Základná deska AMD A520 (Ryzen AM4) micro-ATX s podporou M.2 , Realtek 1Gb Ethernet, HDMI ™, SATA 6 Gbps, zadná a predná podpora USB 5Gbps
Zásuvka AMD AM4: Pripravená pre stolné procesory AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series
Ultrarýchle pripojenie: podpora M.2 , 1Gb Ethernet, zadná a predná podpora USB 5Gbps
Komplexné chladenie: PCH chladič a Fan Xpert
5X Protection III: Viacnásobné hardvérové ochrany pre všestrannú ochranu systému

Špecifikácia:

CPU
AMD Socket AM4 pre AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors*

• Refer to www.asus.com pre CPU support list.

  Chipset
  AMD A520 Chipset

  Memory
  2 x DIMM slots, max. 64GB, DDR4 5100(OC)/ 4866(OC)/ 4666(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 293 / 2800/ 2666/ 2400/ 2133, Un-buffered Memory*
  Dual channel memory architecture

• Memory ECC (ECC mode) na podporu varies by CPU.

• Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of products information site or visit https://www .asus.com/support/ .

  Graphics
  1 x HDMI™ port**

• Graphics specifications majú vary between CPU types. Please refer to AMD CPU specifications.
  ** Supports 4K@60Hz as specified in HDMI 2.1.

  Expansion Slots
  AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors
  1 x PCIe 3.0 x16 slot (supports x16 mode)
  AMD A520 Chipset
  1 x PCIe 3.0 x1 slot


• Ak chcete získať kompatibilitu zariadenia inštalovaný, prosím refer to https://www.asus.com/support/ pre list podporovaných peripherals.

  Storage
  Supports 1 x M.2 slot a 4 x SATA 6Gb/s ports*
  AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors
  M.2 slot (Key M), typ 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
  AMD A520 Chipset
  4 x SATA 6Gb/s ports


• AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.

  Ethernet
  1 x Realtek 1Gb Ethernet

  USB
  Rear USB (Total 6 ports)
  4 x USB 5Gbps ports (4 x Type-A)
  2 x USB 2.0 ports (2 x Type-A)
  Front USB (Total 6 ports)
  1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  2 x USB 2.0 headers support 4 additional USB 2.0 ports

  Audio
  Realtek 7.1 Surround Sound High Definition Audio CODEC*


• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

• Supports up to 24-bit/192 kHz playback
  Audio Features

• Audio Shielding

• Premium audio capacitors

• Dedicated audio PCB layers


• Chassis s audio modulom HD v prednom paneli je potrebný na podporu 7.1 Surround Sound audio output.

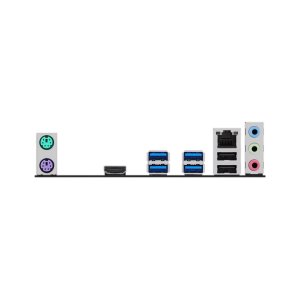

  Back Panel I/O Ports
  4 x USB 5Gbps ports (4 x Type-A)
  2 x USB 2.0 ports (2 x Type-A)
  1 x HDMI™ port
  1 x Realtek 1Gb Ethernet port
  3 x Audio jacks
  1 x PS/2 klávesnica (purple) port
  1 x PS/2 myš (green) port

  Internal I/O Connectors
  Fan and Cooling Related
  1 x 4-pin CPU Fan header
  1 x 4-pin Chassis Fan header
  Power Related
  1 x 24-pin Main Power connector
  1 x 4-pin +12V Power connector
  Storage Related
  1 x M.2 slot (Key M)
  4 x SATA 6Gb/s ports
  USB
  1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  2 x USB 2.0 headers support 4 additional USB 2.0 ports
  Miscellaneous
  1 x Clear CMOS header
  1 x COM Port header
  1 x Front Panel Audio header (F_AUDIO)
  1 x S/PDIF Out header
  1 x Speaker header
  1 x SPI TPM header (14-1pin)
  1 x 10-1 pin System Panel header

  Special Features
  ASUS 5X PROTECTION III


• DIGI+ VRM

• LANGuard

• Overvoltage protection

• SafeSlot Core

• Stainless-steel back I/O
  ASUS Q-Design

• Q-DIMM

• Q-LED Core

• Q-Slot
  ASUS Thermal Solution

• Aluminum heatsink design

  Softvér Features
  ASUS Exclusive Software
  Armoury Crate
  AI Suite 3

• Performance And Power Saving Utility
  TurboV EVO
  EPU
  DIGI+ VRM
  Fan Xpert

• EZ update

• PC Cleaner
  ASUS CPU-Z
  Norton 360 Deluxe (60 Days Free Trial)
  WinRAR (40 Days Free Trial)
  UEFI BIOS
  ASUS EZ DIY

• ASUS CrashFree BIOS 3

• ASUS EZ Flash 3

• ASUS UEFI BIOS EZ Mode
  BIOS
  128 Mb Flash ROM, UEFI AMI BIOS
  Manageability
  WOL by PME, PXE

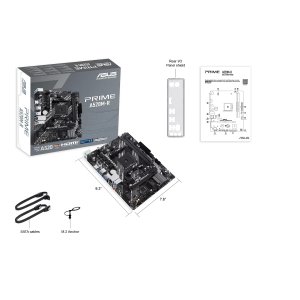

  Accessories
  Cables
  2 x SATA 6Gb/s cables
  Miscellaneous
  1 x I/O shield
  1 x M.2 anchor
  Documentation
  1 x Quick štart guide

  Operating System
  Windows® 11, Windows® 10 64-bit

  Form Factor
  micro-ATX Form Factor
  9.3 palcov x 7.6 palcov (23.6 cm x 19.3 cm)
