Chipset: AMD B450

Rozmerový formát: mATX Form Factor (226 mm x 221 mm) Podpora pre procesory: 3rd/2nd/1st Gen AMD Ryzén™/2nd a 1st Gen AMD Ryzén™ s Radeon™ Vega Graphics/Athlon™ s Radeon™ Vega Graphics Processors Pätica procesora : AM4

Pozícia na pamäti: 2x DDR4 DIMM Podpora pre pamäte: 4400( OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3300(OC) /3200(OC)/3000(OC)/2933(OC)/2800(OC)/2666/2400/2133 MHz Un-buffered Memory Max. veľkosť operačnej pamäte: 64 GB Podpora pre pamäte typu: DDR4 *Dual Channel Memory Architecture *ECC Memory (ECC mode) support varies by CPU

Grafické výstupy: *Integrated Graphics Processor (na základe procesorov 2. a 1. generácie AMD s Radeon Grpahics/Athlon)

Zvuková karta: *Realtek 7.1-Channel High Definition Audio CODEC

Sieťová karta: *Realtek® RTL8111H

Rozširujúce sloty: * 3rd/2nd/1st Gen AMD Ryzen™ Processors *1x PCIe 3.0 x16 (x16 mode) * 2nd and 1st Gen AMD Ryzen™ s Radeon™ Vega Graphics Processors *1x PCIe 3.0 x16 (x8 mode) * AMD AMD with Radeon™ Vega Graphics Processors *1x PCIe 3.0 x16 (x4 mode) * AMD B450 chipset *2x PCIe 2.0 x1

RAID radič: 0, 1, 10

SATA: *4x SATA 6Gb/s ports

M.2 : *1x M.2 Socket 3 s kľúčom M, typ 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)

USB: * zadné USB porty ( celkom 6 ) *4x USB 3.2 Gen 1 port(s)(4 x Type-A) *2x USB 2.0 port(s)(2 x Type-A) * predné USB porty ( celkom 6 ) *2x USB 3.2 Gen 1 port(s) *4x USB 2.0 port(s)

Interné porty: *1x CPU Fan connector(s) (1 x 4 -pin) *1x Chassis Fan connector(s) (1 x 4 -pin) *1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support( s) additional 2 USB 3.2 Gen 1 port(s) (19 - pin) *2x USB 2.0 konektor(s) support(s) additional 4 USB 2.0 port(s) /2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) *1x SPI TPM header *1x COM port(s) connector(s) *4x SATA 6Gb/s connector(s) *1x S/PDIF out header( s) *1x 24-pin EATX Power connector(s) *1x 8-pin ATX 12V Power connector(s) *1x Front panel audio connector(s) (AAFP) *1x System panel(s) *1x Clear CMOS jumper( s) *1x COM port header *1x Speaker connector

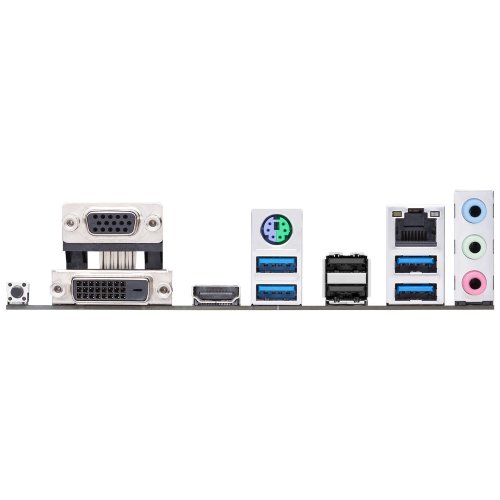

Externé porty: *1x PS/2 klávesnica/mouse combo port(s) *1x DVI-D *1x D-Sub *1x HDMI *1x LAN (RJ45) port(s) *4x USB 3.2 Gen 1 (blue) Type- A *2x USB 2.0 *3x Audio jack(s) *1x BIOS FlashBack™ Button(s)

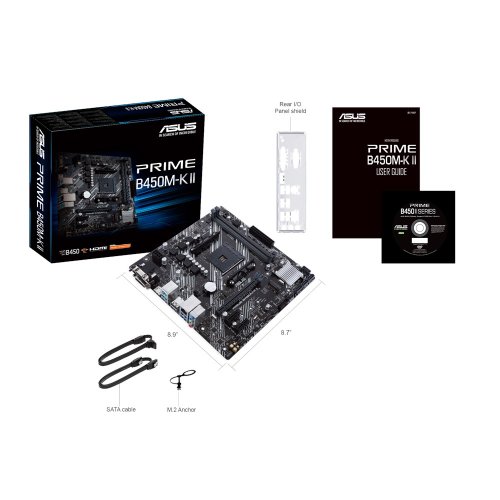

Obsah balenia: *User's manual *I/O Shield *2x SATA 6Gb/s cable(s) *1x M.2 Anchor *1x Supporting DVD

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS

Stránka výrobcu: https://www.asus.com/Motherboards/PRIME-B450M-K-IIhttps://www.asus.com/microsite/motherboard/ASUS-motherboards-Win11-ready/ https://www. asus.com/support/FAQ/1046215
