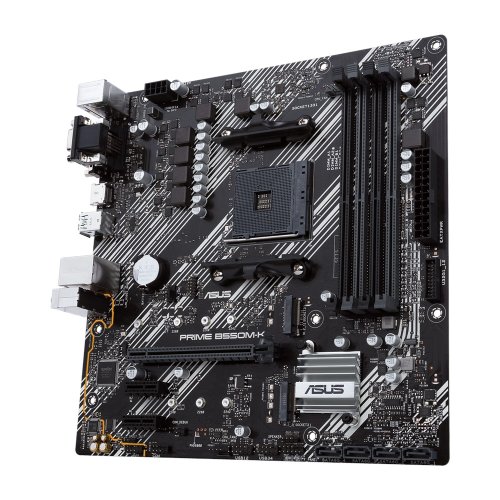

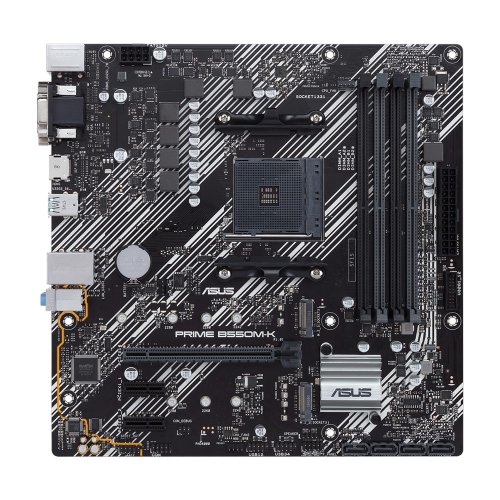

Chipset: AMD B550

Rozmerový formát: mATX Form Factor (244 mm x 244 mm) Podpora pre procesory: AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors Pätica procesora: AM4

Pozícia na pamäti: 4x DDR4 DIMM Podpora pre pamäte: *3rd Gen AMD Ryzen™ Processors - 4600( OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733 ( OC )/3600(OC)/3466(OC)/3333(OC)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *Next Generation OC)/4466(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3333( OC)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory Max.veľkosť operačnej pamäte: 128 GB Podpora pre pamäte typu: DDR4 *Dual Channel Memory Architecture *ECC Memory (ECC mode) support varies by CPU

Grafické výstupy: (na základe procesora) *1x D-Sub *1x DVI-D *1x HDMI 2.1(4K@60HZ)

Zvuková karta: *Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC

Sieťová karta: *Realtek RTL8111H 1Gb Ethernet

Rozširujúce sloty: *1x PCIe 4.0 x16 (x16 mode) *2x PCIe 3.0 x1

RAID radič: 0, 1, 10

SATA: *4x SATA 6Gb/s ports

M.2 : *1x M.2 Socket 3, s M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 a SATA modes) storage devices support *1x M.2 Socket 3, with M Key, Type 2242/ 2260/2280 (PCIE 3.0 x4 a SATA modes) storage devices support

USB: * zadné USB porty ( celkom 6 ) *2x USB 3.2 Gen 2 port(s)(2 x Type-A) *4x USB 3.2 Gen 1 port(s)(4 x Type-A) * predné USB porty ( celkom 6 ) *2x USB 3.2 Gen 1 port(s)(2 x Type-A) *4x USB 2.0 port(s)(4 x Type-A)

Interné porty: *1x CPU Fan connector(s) *2x Chassis Fan connector(s) *1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) *2x USB 2.0 connector(s) support(s ) 4 USB 2.0 port(s) M.2 Socket 3 s kľúčom M, typ 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) *1x SPI TPM header *4x SATA 6Gb/s konektor(s) *1x S/PDIF out header s) *1x 24-pin EATX Power konektor(s) *1x 8-pin EATX 12V Power connectors *1x Front panel audio konektor(s) (AAFP) *1x Clear CMOS jumper(s) *1x System panel connector *1x COM port header *1x Speaker connector

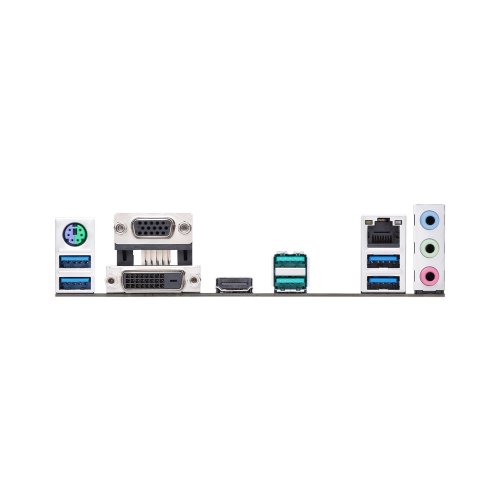

Externé porty: *1x PS/2 klávesnica/mouse combo port(s) *1x DVI-D *1x D-Sub *1x HDMI *1x LAN (RJ45) port(s) *2x USB 3.2 Gen 2 (teal blue) ( 2 x Type-A) * 4x USB 3.2 Gen 1 (blue) Type-A * 3x Audio jack(s)

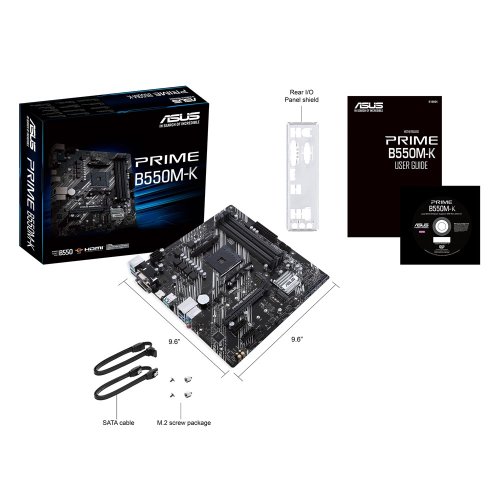

Obsah balenia: *User's manual *I/O Shield *2x SATA 6Gb/s cable(s) *1x Supporting DVD *1x M.2 SSD screw package(s)

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS

Stránka výrobcu: https://www.asus.com/Motherboards/PRIME-B550M-Khttps://www.asus.com/microsite/motherboard/ASUS-motherboards-Win11-ready/ https://www.asus. com/support/FAQ/1046215
