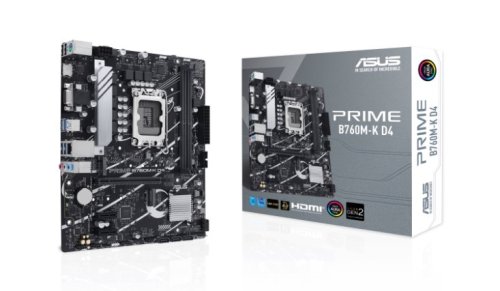

ASUS Prime B760M-K D4, Intel® B760 LGA 1700 mATX motherboard s PCIe 4.0, dva PCIe 4.0 M.2 slots, DDR4, Realtek 2.5Gb Ethernet, VGA, HDMI®, SATA 6 Gbps, front USB 3. Sync
Intel® LGA 1700 Socket: Ready pre 13. a 12. Gen Intel® processors
Ultrafast Connectivity: PCIe 4.0, dva PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet a front USB 3.2 Gen 1 support
Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid ventilátory a Fan Xpert
Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers a Aura RGB hlava pre RGB LED pruhy, easily synced with Aura Sync-capable hardware

Model
PRIME B760M-K D4
CPU
Intel® Socket LGA1700 pre 13. Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel Turbo Boost Technology 2.0 a Intel Turbo Boost Max Technology 3.0 **

• Refer to www.asus.com pre CPU support list.
  ** Intel® Turbo Boost Max Technology 3.0 podporuje depends on the CPU types.
  Chipset
  Intel® B760 Chipset
  Memory
  2 x DIMM, Max. 64GB, DDR4
  5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/ 3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
  Dual Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)

• Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www .asus.com/support/ .
  Graphics
  1 x VGA port
  1 x HDMI® port**

• Graphics specifications majú vary between CPU types. Please refer to na www.intel.com for any updates.
  ** Supports 4K@60Hz as špecifikované v HDMI® 2.1.
  Expansion Slots
  Intel® 13. & 12. Gen Processors
  1 x PCIe 4.0 x16 slot
  Intel® B760 Chipset
  2 x PCIe 4.0 x1 slots
  Poznámka: Na zaistenie kompatibility zariadenia nainštalovaného, prečítajte si https://www.asus.com/support/ pre list podporovaných peripherals.
  Storage
  Total supports 2 x M.2 slotov a 4 x SATA 6Gb/s ports*
  Intel® 13. & 12. Gen Processors
  M.2_1 slot (Key M), typ 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  Intel® B760 Chipset
  M.2_2 slot (Key M), typ 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  4 x SATA 6Gb/s ports

• Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
  Ethernet
  1 x Realtek 2.5Gb Ethernet
  USB
  Rear USB (Total 6 ports)
  4 x USB 3.2 Gen 1 ports (4 x Type-A)
  2 x USB 2.0 ports (2 x Type-A)
  Front USB (Total 5 ports)
  1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
  2 x USB 2.0 headers support 3 additional USB 2.0 ports
  Audio
  Realtek 7.1 Surround Sound High Definition Audio CODEC*


• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

• Supports up to 24-bit/192 kHz playback
  Audio Features

• Audio Shielding

• Premium audio capacitors

• Dedicated audio PCB layers


• Chassis s audio modulom HD v prednom paneli je potrebný na podporu 7.1 Surround Sound audio output.
  Back Panel I/O Ports
  4 x USB 3.2 Gen 1 ports (4 x Type-A)
  2 x USB 2.0 ports (2 x Type-A)
  1 x VGA port
  1 x HDMI® port
  1 x Realtek 2.5Gb Ethernet port
  3 x Audio jacks
  1 x PS/2 Keyboard/Mouse combo port
  Internal I/O Connectors
  Fan and Cooling related
  1 x 4-pin CPU Fan header
  1 x 4-pin Chassis Fan header
  Power related
  1 x 24-pin Main Power connector
  1 x 8-pin +12V Power connector
  Storage related
  2 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
  USB
  1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
  2 x USB 2.0 headers support 3 additional USB 2.0 ports
  Miscellaneous
  2 x Addressable Gen 2 headers
  1 x Aura RGB header
  1 x Clear CMOS header
  1 x COM Port header
  1 x Front Panel Audio header (AAFP)
  1 x S/PDIF Out header
  1 x Speaker header
  1 x SPI TPM header (14-1pin)
  1 x 10-1 pin System Panel header
  Special Features
  ASUS 5X PROTECTION III


• DIGI+ VRM

• LANGuard

• Overvoltage Protection

• SafeSlot Core

• Stainless-Steel Back I/O
  ASUS Q-Design

• Q-DIMM

• Q-LED Core

• Q-Slot
  ASUS EZ DIY

• ProCool
  ASUS Thermal Solution

• VRM heatsink design
  Aura Sync

• Aura RGB header

• Addressable Gen 2 headers
  Softvér Features
  ASUS Exclusive Software
  Armoury Crate

• Aura Sync

• Fan Xpert

• Power Saving
  AI Suite 3

• DIGI+ VRM

• PC Cleaner
  ASUS CPU-Z
  Norton 360 Deluxe (60 Days Free Trial)
  WinRAR
  UEFI BIOS
  ASUS EZ DIY

• ASUS CrashFree BIOS 3

• ASUS EZ Flash 3

• ASUS UEFI BIOS EZ Mode
  BIOS
  128 Mb Flash ROM, UEFI AMI BIOS
  Manageability
  WOL by PME, PXE
  Accessories
  Cables
  2 x SATA 6Gb/s cables
  Miscellaneous
  1 x I/O Shield
  2 x M.2 anchors
  Documentation
  1 x User guide
  Operating System
  Windows® 11, Windows® 10 64-bit
  Form Factor
  mATX Form Factor
  9.6 inch x 8.3 inch (24.4 cm x 21.1 cm)
