Intel® B760 (LGA 1700) mATX motherboard, PCIe 4.0, dva M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 6, DisplayPort, Dual HDMI®, SATA 6 Gbps, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®, Aura Sync
Intel® LGA 1700 Socket: Ready pre 13. a 12. Gen Intel® processors
Ultrafast Connectivity: PCIe 4.0, dva M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 6, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®
Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers a Fan Xpert 2+
ASUS OptiMem II: skutočné routingy traces a vias, plus hlavná vrstva optimizácií preserve signal integrity for improved memory overclocking
Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers a Aura RGB hlava pre RGB LED pruhy, easily synced with Aura Sync-capable hardware

Model

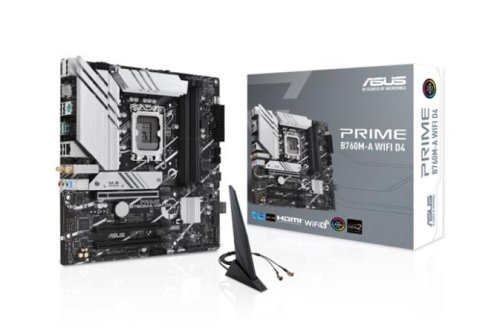

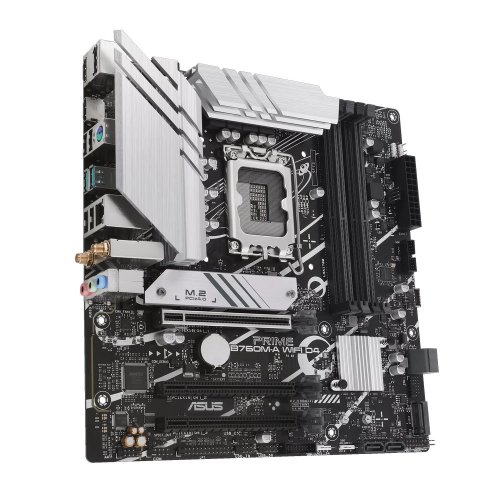

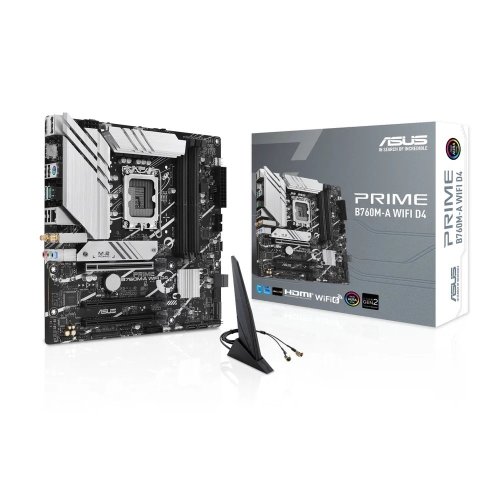

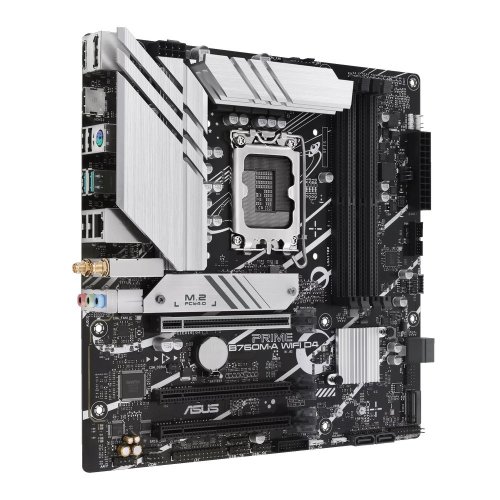

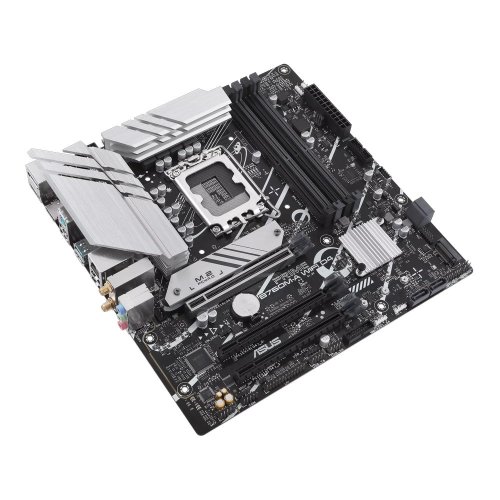

PRIME B760M-A WIFI D4
CPU
Intel® Socket LGA1700 pre 13. Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel Turbo Boost Technology 2.0 a Intel Turbo Boost Max Technology 3.0 **
Referte na www.asus.com pre CPU support list.
** Intel® Turbo Boost Max Technology 3.0 podporuje depends on the CPU types.
Chipset
Intel® B760 Chipset
Memory
4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/373 3(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMom II

• Supported memory types, data rate(Speed), a počet modulov DRAM varov depending on CPU a memory configuration, pre viac informácií nájdete na www.asus.com pre memory support list.
  Graphics
  1 x DisplayPort**
  2 x HDMI® ports***

• Graphics specifications majú vary between CPU types. Please refer to na www.intel.com for any updates.
  ** Supports max. 4K@60Hz a špecifikované v DisplayPort 1.4.
  *** Supports 4K@60Hz a špecifikované v HDMI® 2.1.
  Expansion Slots
  Intel® 13. & 12. Gen Processors
  1 x PCIe 4.0 x16 slot
  Intel® B760 Chipset
  1 x PCIe 4.0 x16 slot (supports x4 mode)
  1 x PCIe 4.0 x16 slot (supports x1 mode)
  Poznámka: Na zaistenie kompatibility zariadenia nainštalovaného, prečítajte si https://www.asus.com/support/ pre list podporovaných peripherals.
  Storage
  Total supports 2 x M.2 slotov a 4x SATA 6Gb/s ports*
  Intel® 13. & 12. Gen Processors
  M.2_1 slot (Key M), typ 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  Intel® B760 Chipset
  M.2_2 slot (Key M), typ 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  4 x SATA 6Gb/s ports

• Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
  Ethernet
  1 x Realtek 2.5Gb Ethernet
  Wireless & Bluetooth
  Wi-Fi 6
  2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
  Supports 2.4/5GHz frequency band
  Bluetooth v5.2

• Bluetooth verzia má vary, prečítajte si odkaz na Wi-Fi module manufacturer webovej stránky pre najnovšie špecifickosti.
  USB
  Rear USB (Total 6 ports)
  2 x USB 3.2 Gen 2 ports (2 x Type-A )
  4 x USB 2.0 ports (4 x Type-A)
  Front USB (Total 10 ports)
  2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
  1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
  2 x USB 2.0 headers support 4 additional USB 2.0 ports
  1 x USB 2.0 header supports 1 additional USB 2.0 port
  Audio
  Realtek 7.1 Surround Sound High Definition Audio CODEC*


• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

• Supports up to 24-bit/192 kHz playback
  Audio Features

• Audio Shielding

• Premium audio capacitors

• Dedicated audio PCB layers


• Chassis s audio modulom HD v prednom paneli je potrebný na podporu 7.1 Surround Sound audio output.

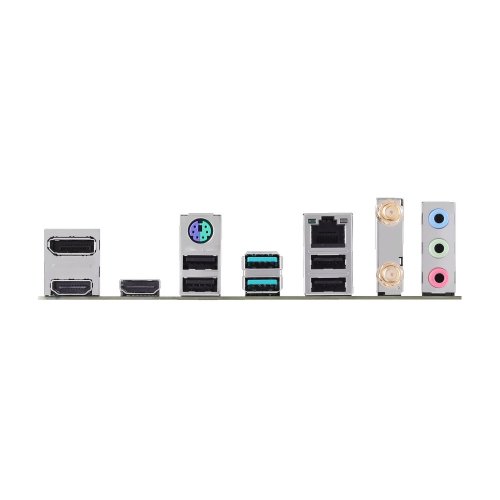

  Back Panel I/O Ports
  2 x USB 3.2 Gen 2 ports (2 x Type-A )
  4 x USB 2.0 ports (4 x Type-A)
  1 x DisplayPort
  2 x HDMI® ports
  1 x Wi-Fi Module
  1 x Realtek 2.5Gb Ethernet port
  3 x Audio jacks
  1 x PS/2 Keyboard/Mouse combo port
  Internal I/O Connectors
  Fan and Cooling related
  1 x 4-pin CPU Fan header
  1 x 4-pin CPU OPT Fan header
  2 x 4-pin Chassis Fan headers
  Power related
  1 x 24-pin Main Power connector
  1 x 8-pin +12V Power connector
  Storage related
  2 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
  USB
  2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
  1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
  2 x USB 2.0 headers support 4 additional USB 2.0 ports
  1 x USB 2.0 header supports 1 additional USB 2.0 port
  Miscellaneous
  3 x Addressable Gen 2 headers
  1 x Aura RGB header
  1 x Clear CMOS header
  1 x COM Port header
  1 x Front Panel Audio header (AAFP)
  1 x LPT header
  1 x S/PDIF Out header
  1 x SPI TPM header (14-1pin)
  1 x 20-3 pin System Panel hlavy s Chassis intrude function
  Special Features
  ASUS 5X PROTECTION III


• DIGI+ VRM

• LANGuard

• Overvoltage Protection

• SafeSlot Core+

• Stainless-Steel Back I/O
  ASUS Q-Design

• Q-DIMM

• Q-LED Core

• Q-Slot
  ASUS Thermal Solution

• M.2 heatsink

• VRM heatsink design
  ASUS EZ DIY

• ProCool
  Aura Sync

• Aura RGB header

• Addressable Gen 2 headers
  Softvér Features
  ASUS Exclusive Software
  Armoury Crate

• Aura Creator

• Aura Sync

• Fan Xpert 2+

• Power Saving
  AI Suite 3

• Digi+ VRM

• PC Cleaner
  ASUS CPU-Z
  MyAsus
  Norton Deluxe (60 Days Free Trial)
  WinRAR
  UEFI BIOS
  ASUS EZ DIY

• ASUS CrashFree BIOS 3

• ASUS EZ Flash 3

• ASUS UEFI BIOS EZ Mode
  BIOS
  128 Mb Flash ROM, UEFI AMI BIOS
  Manageability
  WOL by PME, PXE

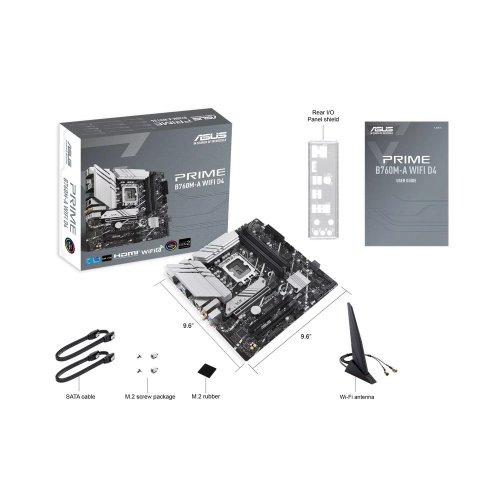

  Accessories
  Cables
  2 x SATA 6Gb/s cables
  Miscellaneous
  1 x ASUS Wi-Fi moving antennas
  1 x I/O Shield
  1 x M.2 Rubber Package
  1 x Screw package for M.2 SSD
  Documentation
  1 x User guide
  Operating System
  Windows® 11, Windows® 10 64-bit
  Form Factor
  mATX Form Factor
  9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
