ASUS PRIME B840M-A

• mATX Form Factor

CPU: AMD Socket AM5 pre AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Chipset: AMD B840 Chipset

Pamäť: 4 x DIMM slots, max. 192GB, DDR5 - Podpora až 7600+MT/s (OC) s procesormi Ryzen™ radu 9000 a 8000 a 7000, ECC a Non-ECC, nevyrovnávacej pamäte DIMM

Grafické porty: *2 x DisplayPort *1 x HDMI port

Rozširujúce sloty: AMD Ryzen™ 9000 & 7000 Series Desktop Processors *1 x PCIe 4.0 x16 slot (support x 16 mode) AMD Ryzen 8000 Series Desktop Processors * 1 x PCIe 4.0 x16 slot x PCIe 3.0 x16 slots (support x1 mode)

Úložný priestor: Total supports 3 x M.2 slotov a 4 x SATA 6Gb/s portov AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors * M.2_1 slot (Key M), typ 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), typ 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD B840 Chipset * M.2_3 slot (Key M), typ 2280 (supports PCIe 3.0 x4 mode) *4 x SATA 6Gb/s ports

Ethernet: *1 x Realtek 2.5Gb Ethernet *ASUS LANGuard

USB: Zadný USB (Total 7 ports) *2 x USB 10 Gbps ports (2 x Type-A) *1 x USB 5 Gbps port (1 x USB Type-C®) *4 x USB 2.0 ports (4 x Type-A) Predný USB (Total 7 ports) *1 x USB 5Gbps konektor (supports USB Type-C®) *1 x USB 5Gbps header supports 2 additional USB 5Gbps ports *2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC* *Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking *Supports up to 24-bit/192 kHz playback Audio Features *Audio Shielding *Premium audio capacitors *Dedica PCB layers

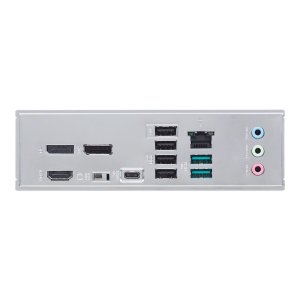

Vstupy/výstupy zadného panela: *2 x USB 10 Gbps portov (2 x Type-A) *1 x USB 5 Gbps port (1 x USB Type-C®) *4 x USB 2.0 ports (4 x Type-A) *2 x DisplayPort *1 x HDMI port *1 x Realtek 2.5 Gb Ethernet port *3 x Audio jacks *1 x BIOS FlashBack™ button

Interné vstupy/výstupy: Ventilátory a chladenie: *1 x 4-pin CPU Fan header *1 x 4-pin CPU OPT Fan header *2 x 4-pin Chassis Fan headers

Napájanie: *1 x 24-pin Main Power connector *1 x 8-pin +12V CPU Power connector

Úložisko: *3 x M.2 slots (Key M) *4 x SATA 6Gb/s ports

USB: *1 x USB 5Gbps konektor (supports USB Type-C® ) *1 x USB 5Gbps header supports 2 additional USB 5Gbps ports *2 x USB 2.0 headers support 4 additional USB 2.0 ports

Rôzne: *3 x Addressable Gen 2 headers *1 x Clear CMOS header *1 x COM Port header *1 x Front Panel Audio header (F_AUDIO) *1 x S/PDIF Out header *1 x SPI TPM header (14-1 pin ) *1 x 10-1 pin Front System Panel header

Príslušenstvo: Káble: *2 x SATA 6Gb/s cables Rôzne: *1 x M.2 rubber package *3 x Screw packages for M.2 SSD Dokumenty: *1 x Quick start guide
