Chipset: Intel H610 Chipset

Rozmerový formát: mATX (23.4 cm x 20.3 cm) Podpora pre procesory: 12th Gen Intel Core, Pentium Gold and Celeron Processors Pätica procesora: LGA1700

Pozícia na pamäti: 2 x DIMM, Dual Channel Memory Architecture Podpora pre pamäte: DDR4 3200/3000/2933/2800/2666/2400/2133 MHz Max.veľkosť operačnej pamäte: 64 GB Podpora pre pamäte typu: XMP

Grafické výstupy: (na základe procesora) *1 x D-Sub port *1 x HDMI port

Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC

Sieťová karta: 1 x Realtek 1Gb Ethernet

Rozširujúce sloty: *1 x PCIe 4.0 x16 slot *1 x PCIe 3.0 x1 slot

SATA: 4 x SATA 6Gb/s ports

M.2 : 1 x M.2 slot

USB: * Interné: *1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports *1 x USB 2.0 header supports additional 2 USB 2.0 ports * Externý: *2 x USB 3.2 Gen 1 ports (2 x Type-A ) *4 x USB 2.0 ports (4 x Type-A)

Interné porty: * Fan and Cooling related *1 x 4-pin CPU Fan header *1 x 4-pin Chassis Fan header * Power related *1 x 24-pin Main Power connector *1 x 8-pin +12V Power connector * Storage related *1 x M.2 slot (Key M) *4 x SATA 6Gb/s ports * USB *1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports *1 x USB 2.0 header supports additional 2 USB 2.0 ports * Miscellaneous *1 x RGB header *1 x Clear CMOS header *1 x COM Port header *1 x Front Panel Audio header (AAFP) *1 x S/PDIF Out header *1 x Speaker header *1 x SPI TPM header (14 -1pin) *1 x 10-1 pin System Panel header

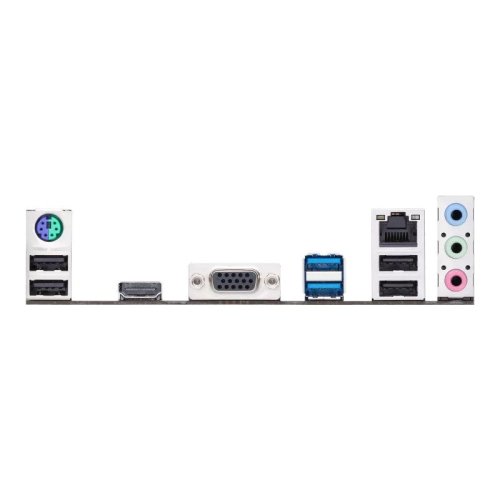

Externé porty: *2 x USB 3.2 Gen 1 ports (2 x Type-A) *4 x USB 2.0 ports (4 x Type-A) *1 x D-Sub port *1 x HDMI port *1 x Realtek 1Gb Ethernet port *3 x Audio jacks *1 x PS/2 Keyboard/Mouse combo port

BIOS: UEFI AMI BIOS, 128 Mb Flash ROM
