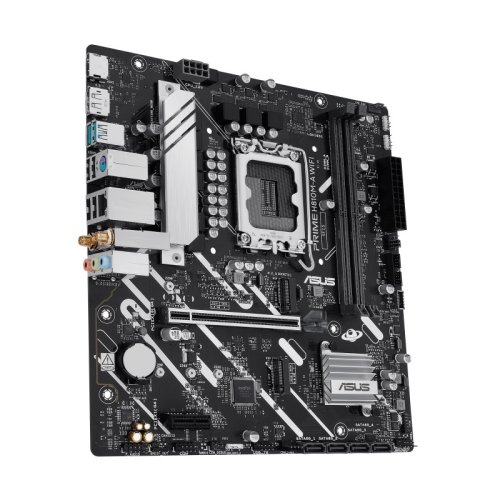

ASUS PRIME H810M-A WIFI

• mATX Form Factor

CPU: Support Intel® Core™ Ultra Processors (Series 2) , LGA1851 - Supports Intel® Turbo Boost Technology 2.0 a Intel® Turbo Boost Max Technology 3.0

Chipset: Intel H810 Chipset

Pamäť: 2 x DIMM slots, max. 128GB, DDR5 *Podporuje až 6400MT/s, bez vyrovnávacej pamäte, bez vyrovnávacej pamäte, s taktovaním a bez vyrovnávacej pamäte *DIMM (CUDIMM) *Dvojkanálová architektúra pamäte *DIMM Fit *Podporuje pamäťový modul Intel® Extreme Memory Profile (XMP) *ASUS Enhanced Memory Profile II (AEMP II)

Grafické porty: 1 x DisplayPort 1 x HDMI port

Rozširujúce sloty:

Intel® Core™ Ultra Processors (Series 2) *1 x PCIe 4.0 x16 slot Intel® H810 Chipset *1 x PCIe 4.0 x1 slot

Úložný priestor: Total supports 2 x M.2 slotov a 4 x SATA 6 Gb/s porty Intel® H810 Chipset * M.2_1 slot (Key M), typ 2280 (supports PCIe 4.0 x4 mode) * M.2_2 slot (Key M ), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) *4 x SATA 6Gb/s ports

Ethernet: *1 x Intel® 1Gb Ethernet port *ASUS LANGuard

Pripojenie a Bluetooth: *Wi-Fi 6 *1x1 Wi-Fi 6 (802.11ax) *Supports 2.4/5GHz frequency band *Bluetooth® v5.3

USB: Zadný USB (Total 7 ports) *2 x USB 10 Gbps ports (2 x Type-A) *4 x USB 2.0 ports (4 x Type-A) Predný USB (Total 7 ports) *1 x USB 5 Gbps connector (supports USB Type-C®) *1 x USB 5 Gbps header supports 2 additional USB 5 Gbps ports *1 x USB Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC *Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking *Supports up to 24-Bit/192 kHz *Premium audio capacitors *Dedicated audio PCB layers Vstupy/výstupy zadného panelu: *2 x USB 10 Gbps ports (2 x Type-A) *4 x USB 2.0 ports (4 x Type-A) *1 x DisplayPort *1 x HDMI™ port *1 x Wi-Fi module *1 x Intel® 1Gb Ethernet port *3 x Audio jacks *1 x PS/2 keyboard/mouse combo port Interné vstupy/výstupy: Ventilátory a chladenie: *1 x 4-pin CPU Fan header *2 x 4-pin Chassis Fan headers Napájanie: *1 x 24-pin Main Power connector *1 x 8-pin +12V CPU Power connector Úložisko: *2 x M.2 slots (Key M) *4 x SATA 6Gb/s ports USB: *1 x USB 5Gbps konektor (supports USB Type-C®) *1 x USB 5Gbps header supports 2 additional USB 5Gbps ports *1 x USB 2.0 header supports 2 additional USB 2.0 ports Rôzne: *3 x Addressable Gen2 headers *1 x Clear CMOS *1 x COM Port header *1 x Front Panel Audio header (F_AUDIO) *1 x S/PDIF Out header *1 x SPI TPM header (14-1 pin) *1 x 10-1 pin Front Panel System header Príslušenstvo: Káble: *2 x SATA 6Gb/s cables Rôzne: *1 x ASUS Wi-Fi moving anténa *1 x I/O štítok *1 x Screw package for M.2 SSD Dokumenty: *1 x Quick start guide
