ASUS AI Overclocking profiluje CPU a chlazení tak, aby predpovedalo optimálnu konfiguráciu a posunulo systém na jeho hranice.
Vyvážte termiku a akustiku akejkoľvek stavby jediným kliknutím.
AI Networking II kombinuje inteligentné technológie na nepretržitú optimalizáciu výkonu siete, poskytovanie důvěryhodného a bezproblémového pripojenia a uvolnenie plnej rýchlosti WiFi 7*.

Špecifikácia:

CPU
AMD Socket AM5 pre AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*

• Refer to www.asus.com pre CPU support list.

  Chipset
  AMD X870

  Memory
  4 x DIMM slots, max. 192GB, DDR5
  Supports up to 8000+MT/s(OC) with Ryzen™
  9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-buffered

  Graphics
  1 x DisplayPort**
  1 x HDMI™ port***
  2 x USB4® (40Gbps) ports support USB
  Type-C® display outputs****

• Please refer to AMD CPU specifications.
  ** Supports max. 8K@30Hz as specified in
  DisplayPort 1.4.
  *** Supports 4K@60Hz as specified in HDMI
  2.1.
  ** Supports max. 4K@60Hz as specified in
  DisplayPort 1.4a
  **** VGA resolution support depends on
  processors' alebo grafické karty' resolution.

  Expansion Slots
  AMD Ryzen™ 9000 & 7000 Series Desktop Processors
  1 x PCIe 5.0 x16 slot (supports x16 mode)
  AMD Ryzen™ 8000 Series Desktop Processors
  1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
  AMD X870 Chipset
  1 x PCIe 4.0 x16 slot (supports x4 mode)

• Pozrite si PCIe bifurcation table on the support site ( https://www.asus.com/support/FAQ/1037507/ ).
  ** Specifications vary by CPU types.


• Ak chcete získať kompatibilitu zariadenia inštalovaný, prosím referte na https://www.asus.com/support/ pre list podporovaných peripherals.

  Storage
  Supports 4 x M.2 slots a 2 x SATA 6Gb/s ports*
  AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
  M.2_1 slot (Key M), typ 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  M.2_2 slot (Key M), typ 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
  AMD Ryzen™ 8000 Series Desktop Processors
  M.2_1 slot (Key M), typ 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
  M.2_2 slot (Key M), typ 2242/2260/2280/22110 (Not supports)*
  AMD X870 Chipset
  M.2_3 slot (Key M), typ 2280 (supports PCIe 4.0 x4 mode)
  M.2_4 slot (Key M), typ 2280 (supports PCIe 4.0 x4 mode)
  2 x SATA 6Gb/s ports


• AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Funkcia je s podporou AMD Ryzen™ 9000 series CPU.
  ** M.2_2 shares bandwidth with PCIEX16(G5). When M.2_2 is occupied with SSD zariadenia, PCIEX16(G5) will run x8 only.
  *** M.2_3 shares bandwidth with PCIEX16(G4). When M.2_3 is occupied with SSD zariadenia, PCIEX16(G4) will be disabled.
  **** M.2_2 bude disabled pri použití AMD Ryzen™ 8000 Series Desktop Processors.

  Ethernet
  1 x Intel® 2.5Gb Ethernet
  ASUS LANGuard

  Wireless & Bluetooth
  Wi-Fi 7*
  2x2 Wi-Fi 7 (802.11be)
  Supports 2.4/5/6GHz frequency band**
  Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
  Bluetooth® v5.4***
  Wi-Fi features may vary depending on the operating system
  Pre Windows 11, Wi-Fi 7 bude require 24H2 alebo posledná verzia pre úplné funkcie, Windows 11 21H2/22H2/23H2 s podporou Wi-Fi 6E.
  Pre Windows 10, prosím uvedomte si, že žiadateľ nie je dostupný , prosím refer to the Wi-Fi chipset vendor's website for details.
  ** Wi-Fi 6GHz frekvencia band and bandwidth regulátory majú vary between countries.
  *** The Bluetooth® verzia má vary, prosím referuje na Wi-Fi module manufacturer webovej stránky pre najnovšie špecifickosti.

  USB
  Rear USB (Total 12 ports)
  2 x USB4® (40 Gbps) porty (2 x USB Type-C® s DP Alt mode)
  6 x USB 10 Gbps portov (5 x Type-A + 1 x USB Type-C® s 30 W PD Fast-charge)**
  4 x USB 5Gbps ports (4 x Type-A)
  Front USB (Total 9 ports)
  1 x USB 20Gbps konektor (supports USB Type-C®)
  2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
  2 x USB 2.0 headers support 4 additional USB 2.0 ports

• USB Type-C power delivery output: max. 5V/3A
  ** USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A

  Audio
  ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*


• Impedancia pre front a rear headphone outputs

• Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking

• High quality 120 dB SNR stereo playback output and 110 dB SNR recording input

• Supports up to 32-Bit/384 kHz playback on front panel"
  Audio Features

• SupremeFX Shielding Technology

• Savitech SV3H712 AMP

• Rear optical S/PDIF out port

• Premium audio capacitors

• Audio cover


• LINE OUT port na rear paneli nie je support spatial audio. Ak sa budete chcieť použiť spatial audio, budete chcieť pripojiť váš audio výstup zariadenia k audio jacku na prednej strane vášho chassis alebo použiť USB interface audio zariadenia.

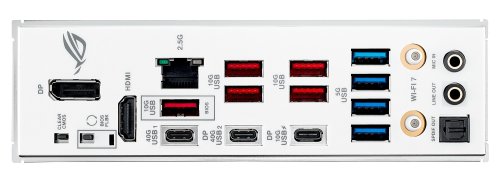

  Back Panel I/O Ports
  2 x USB4® (40 Gbps) porty (2 x USB Type-C® s DP Alt mode)
  6 x USB 10 Gbps portov (5 x Type-A + 1 x USB Type-C® s 30 W PD Fast-charge)**
  4 x USB 5Gbps ports (4 x Type-A)
  1 x DisplayPort
  1 x HDMI™ port
  1 x Wi-Fi module
  1 x Intel® 2.5Gb Ethernet
  2 x Audio jacks
  1 x Optical S/PDIF out port
  1 x BIOS FlashBack™ button
  1 x Clear CMOS button

  Internal I/O Connectors
  Fan and Cooling Related
  1 x 4-pin CPU Fan header
  1 x 4-pin CPU OPT Fan header
  1 x 4-pin AIO Pump header
  5 x 4-pin Chassis Fan headers
  Power Related
  1 x 24-pin Main Power connector
  2 x 8-pin +12V CPU Power connectors
  Storage Related
  4 x M.2 slots (Key M)
  2 x SATA 6Gb/s ports

  USB
  1 x USB 20Gbps konektor (supports USB Type-C®)
  2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
  2 x USB 2.0 headers support 4 additional USB 2.0 ports
  Miscellaneous
  3 x Addressable Gen 2 headers
  1 x Alteration PCIe mode switch
  1 x Chassis Intrusion header
  1 x CPU Over voltage jumper
  1 x Front Panel Audio header (F_AUDIO)
  1 x Štart button
  1 x 10-1 pin System Panel header
  1 x Thermal Sensor header

  Special Features
  Extreme Engine Digi+


• 5K Black metallic capacitors
  ASUS Q-Design

• M.2 Q-Latch

• M.2 Q-Release

• M.2 Q-Slide

• PCIe Slot Q-Release Slim (s PCIe SafeSlot)

• Q-Antenna

• Q-DIMM

• Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

• Q-Slot
  ASUS Thermal Solution

• M.2 heatsink backplate

• M.2 heatsink
  ASUS EZ DIY

• BIOS FlashBack™ button

• BIOS FlashBack™ LED

• Clear CMOS button

• ProCool II

• Pre-mounted I/O shield

• SafeSlot

• SafeDIMM
  Aura Sync

• Addressable Gen 2 headers

  Softvér Features
  ROG Exclusive Software

• ROG CPU-Z

• Dolby Atmos
  ASUS Exclusive Software
  Armoury Crate

• AIDA64 Extreme (60 days free trial)

• Aura Creator

• Aura Sync

• Fan Xpert 4 (s AI Cooling II)

• GameFirst

• HWiNFO

• Power Saving
  ASUS Driver Hub
  ASUS GlideX
  USB Wattage Watcher
  TurboV Core
  Adobe Creative Cloud (Free Trial)
  Norton 360 for Gamers (60 Days Free Trial)
  WinRAR (40 Days Free Trial)
  UEFI BIOS
  AI Overclocking Guide
  ASUS EZ DIY

• ASUS CrashFree BIOS 3

• ASUS EZ Flash 3

• ASUS UEFI BIOS EZ Mode

• ASUS MyHotkey
  Dynamic OC Switcher
  FlexKey
  BIOS
  256 Mb Flash ROM, UEFI AMI BIOS
  Manageability
  WOL by PME, PXE

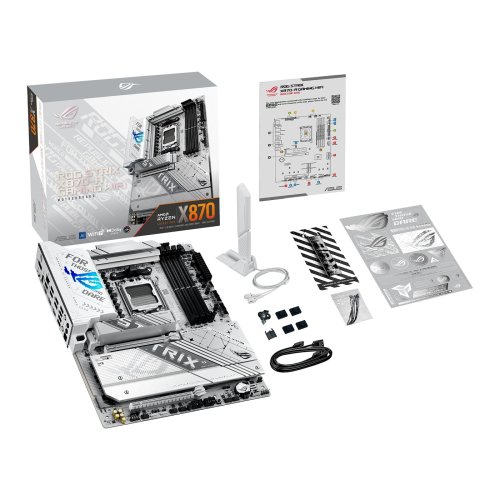

  Accessories
  Cables
  2 x SATA 6Gb/s cables
  Additional Cooling Kit
  1 x Thermal pad pre M.2 22110
  Miscellaneous
  1 x ASUS WiFi Q-Antenna
  1 x Cable ties package
  1 x M.2 Q-Latch package
  1 x M.2 Q-Slide package
  1 x ROG key chain
  1 x ROG Strix stickers
  4 x M.2 rubber packages
  Documentation
  1 x Quick štart guide

  Operating System
  Windows 11

  Form Factor
  ATX Form Factor
  12 palcov x 9.6 palcov (30.5 cm x 24.4 cm)
