Parametre:

CPU

^Intel® Socket LGA1700 pre ^Intel® Core™ 14. & 13. Gen Processors, Intel ^® Core™ 12. Gen, Pentium ^® Gold and Celeron ^® Processors*
Supports ^Intel Turbo Boost Technology 2.0 a Intel ^Turbo Boost Max Technology 3.0**
* Refer to www.asus.com pre CPU support list.
** Intel ^® Turbo Boost Max Technology 3.0 podporuje depends on the CPU types.

Chipset

Intel ^® Z790 Chipset

Memory

4 x DIMM, Max. 192GB, DDR5
7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/6000(OC) /5800(OC)/5600/5400/5200/5000/4800
Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel ^® Extreme Memory Profile (XMP)
OptiMom II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com /support/
** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.

Graphics

1 x DisplayPort**
1 x HDMI ^® port***
* Graphics specifications majú vary between CPU types. Please refer to ww.intel.com na any updates.
** Supports max. 8K@60Hz as špecifikovaným v DisplayPort 1.4.
*** Supports 4K@60Hz a špecifikované v HDMI 2.1.
**** VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots

Intel ^® 13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot

Intel ^® Z790 Chipset
2 x PCIe 4.0 x16 slots (support x4 mode)
1 x PCIe 3.0 x1 slot

* Please check the PCIe bifurcation table
on the support site ( https://www.asus.com/support/FAQ/1037507/ ).
** Ak chcete dosiahnuť kompatibilitu zariadenia nainštalovanú, prosím referte na https://www.asus.com/support/ pre list podporovaných peripherals.

Storage

Total supports 4 x M.2 slotov a 4 x SATA 6Gb/s ports*

Intel ^® 13th & 12th Gen Processors
M.2_1 slot (Key M), typ 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

Intel ^® Z790 Chipset
M.2_2 slot (Key M), typ 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), typ 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), typ 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* ^Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.

Ethernet

1 x Intel ^® 2.5Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth

Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth ^® v5.3
* WiFi 6E 6GHz regulatory may vary between countries.

USB

Rear USB (Total 12 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C ^® )
3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C ^® )
4 x USB 3.2 Gen 1 ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 7 ports)
1 x USB 3.2 Gen 2x2 konektor (supports USB Type-C ^® s 30W PD Fast-charge)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Impedancia bez pre front a rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-bit/384 kHz playback*
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
*Rear panel Line z portu nie je podporovaný spatial audio. Ak sa budete chcieť použiť štíhly zvuk, aby sa pripojili vaše audio výstup zariadenia k audio jacku na prednom paneli vášho chassis.

Back Panel I/O Ports

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C ^® )
3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C ^® )
4 x USB 3.2 Gen 1 ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI ^® port
1 x Wi-Fi Module
1 x Intel ^® 2.5Gb Ethernet port
5 x Gold-plated audio jacks*
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
*Rear panel Lime (Line out) port nie je podporovaný spatial audio. Ak sa budete chcieť použiť štíhly zvuk, aby sa pripojili vaše audio výstup zariadenia k audio jacku na prednom paneli vášho chassis.

Internal I/O Connectors

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers

Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connectors

Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 3.2 Gen 2x2 konektor (supports USB Type-C ^® s 30W PD Fast-charge)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel hlavy s Chassis intrude function
1 x Štart button
1 x Thermal Sensor header
1 x Thunderbolt™ header

Special Features

Extreme Engine Digi+
- 5K Black Metallic Capacitors

ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot

ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design

ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- CPU Socket lever protector
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM

Aura Sync
- Aura RGB header
- Addressable Gen 2 headers

Front Panel USB 3.2 Gen 2x2 s PD Fast-charge Support
- Support: up to 30W charging
- Output: 5/9V max. 3A, 12V max. 2.5A
- Compatible with PD3.0

Softvér Features

ROG Exclusive Software
- GameFirst VI
- ROG CPU-Z
- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS ^® Sound Unbound

ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- Aura Creator- Aura Sync
- Fan Xpert 4 (s AI Cooling II)
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
- Easy Optimization with AI Overclocking
- TPU
- DIGI+ VRM
- Turbo app
- PC Cleaner
MyAsus
Norton 360 for Gamers
WinRAR

UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
FlexKey
MemTest86

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

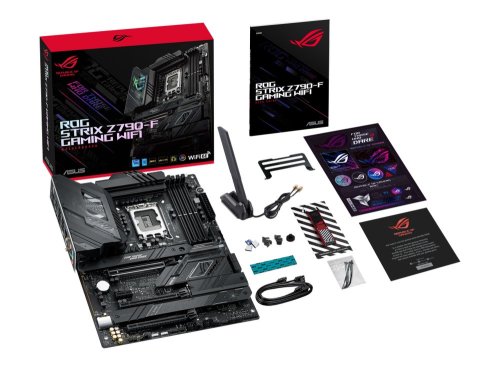

Accessories

Cables
2 x SATA 6Gb/s cables

Additional Cooling Kit
1 x Thermal pad pre M.2
1 x DDR5 fan holder

Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties package
1 x M.2 backplate Q-Latch package
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
2 x M.2 Rubber Packages
1 x M.2 backplate Rubber

PackageDocumentation
1 x User guide

Operating System

Windows ^® 11, Windows ^® 10 64-bit

Form Factor

ATX Form Factor
12 palcov x 9.6 palcov (30.5 cm x 24.4 cm)
