Chipset: AMD B450

Rozmerový formát: ATX Form Factor (305 mm x 244 mm) Podpora pre procesory: 3rd/2nd/1st Gen AMD Ryzén ™/2nd and 1st Gen AMD Ryzén™ s Radeon™ Vega Graphics/Athlon™ s Radeon™ Vega Graphics Processors : AM4

Pozícia na pamäti: 4x DDR4 DIMM Podpora pre pamäte: 4400(OC)/3533(OC)/3466(OC)/3200(OC)/3000(OC)/2800(OC)/2666/2400/2133 MHz Un-buffered Memory Max. veľkosť operačnej pamäte: 128 GB Podpora pre pamäte typu: DDR4 *Dual Channel Memory Architecture *ECC Memory (ECC mode)

Grafické výstupy: *Integrated Graphics Processor (na základe procesorov 2. a 1. generácie AMD s Radeon Grpahics/Athlon)

Multi GPU: AMD CrossFireX™ Technology

Zvuková karta: * Realtek® ALC S1200A 8-Channel High Definition Audio CODEC

Sieťová karta: *Realtek® L8200A

Rozširujúce sloty: * 3rd/2nd/1st Gen AMD Ryzén™ Processors *1x PCIe 3.0/2.0 x16 (x16 mode) * 2nd and 1st Gen AMD Ryzén™ s Radeon™ Vega Graphics Processors *1x PCIe 3.0/2.0 x16 (x * AMD Athlon™ s Radeon™ Vega grafické procesory *1x PCIe 3.0/2.0 x16 (x4 mode) * AMD B450 chipset *1x PCIe 2.0 x16 (max at x4 mode) *3x PCIe 2.0 x1

RAID radič: 0, 1, 10

SATA: *6x SATA 6Gb/s ports

M.2 : *1x M.2 Socket 3 s M kľúčom, typ 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) *1x M.2 Socket 3 s kľúčom M, typ 2242/2260 /2280 storage devices support (PCIE 2.0 x 4 mode)

USB: * zadné USB porty ( celkom 8 ) *2x USB 3.2 Gen 2 port(s)(1 x USB Type-C®)(1 x Type-A +0 x ) *4x USB 3.2 Gen 1 port(s)( 4 x Type-A) *2x USB 2.0 port(s)(2 x Type-A) * predné USB porty ( celkom 6 ) *2x USB 3.2 Gen 1 port(s) *4x USB 2.0 port(s)

Interné porty: *1x CPU Fan konektor(s) (1 x 4-pin) *3x Chassis Fan konektor(s) (3 x 4-pin) *1x AIO_PUMP konektor (1 x 4-pin) *2x Aura RGB Strip Header *1x USB 3.2 Gen 1(up to 5Gbps) konektor(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin) *2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) *1x M.2 Socket 3 s kľúčom M, typ 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 režim) *1x M.2 Socket 3 s kľúčom M, typ 2242/2260 /2280 storage devices support (PCIE 2.0 x 4 mode) *1x SPI TPM header *6x SATA 6Gb/s connector(s) *1x 24-pin EATX Power connector(s) *1x 8-pin ATX 12V Power connector(s) *1x Front panel audio konektor(s) (AAFP) *1x System panel(s) *1x Clear CMOS jumper(s) *1x COM port header

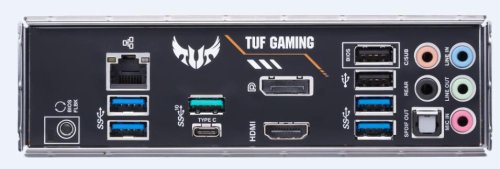

Externé porty: *1x DisplayPort *1x HDMI *1x LAN (RJ45) port(s) *2x USB 3.2 Gen 2 (1 x USB Type-C®+1 x Type-A) *4x USB 3.2 Gen 1 Type-A * 2x USB 2.0 *5x Audio jack(s) *1x BIOS FlashBack™ Button(s)

Obsah balenia: *User's manual *I/O Shield *2x SATA 6Gb/s cable(s) *1x M.2 Screw Package *1x Supporting DVD *1x TUF GAMING Sticker *1x TUF Certification card(s)

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS

Stránka výrobcu: https://www.asus.com/Motherboards/TUF-GAMING-B450-PLUS-IIhttps://www.asus.com/microsite/motherboard/ASUS-motherboards-Win11-ready/ https:// www.asus.com/support/FAQ/1046215
