Chipset: AMD B550

Rozmerový formát: mATX Form Factor (244 mm x 244 mm) Podpora pre procesory: AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors Pätica procesora: AM4

Pozícia na pamäti: 4x DDR4 DIMM Podpora pre pamäte: *3rd Gen AMD Ryzen™ Processors - 4600( OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733 ( OC )/3600(OC)/3466(OC)/3333(OC)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *Next Generation OC)/4466(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3333( OC)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory Max.veľkosť operačnej pamäte: 128 GB Podpora pre pamäte typu: DDR4 *Dual Channel Memory Architecture *ECC Memory (ECC mode)

Grafické výstupy: (na základe procesora) *1x DisplayPort 1.2 *1x HDMI 2.1(4K@60HZ)

Multi GPU: AMD 2-Way CrossFireX Technology

Zvuková karta: *Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC

Sieťová karta: *Realtek RTL8125B 2.5Gb Ethernet (TUF LANGuard)

Rozširujúce sloty: *1x PCIe 4.0 x16 (x16 mode) *1x PCIe 3.0 x16 (x4 mode) *1x PCIe 3.0 x1

RAID radič: 0, 1, 10

SATA: *4x SATA 6Gb/s ports

M.2 : *1x M.2 Socket 3, s M Key, Type 2242/2260/2280 (PCIE 4.0 x4 a SATA modes) storage devices support *1x M.2 Socket 3, s M Key, Type 2242/2260/ 2280/22110(PCIE 3.0 x4 a SATA modes) storage devices support

USB: * zadné USB porty ( celkom 8 ) *2x USB 3.2 Gen 2 port(s)(1 x Type-A + 1 x USB Type-C®) *4x USB 3.2 Gen 1 port(s)(4 x Type- A) *2x USB 2.0 port(s)(2 x Type-A) * predné USB porty ( celkom 6 ) *2x USB 3.2 Gen 1 port(s)(2 x Type-A) *4x USB 2.0 port(s) (4 x Type-A)

Interné porty: *1x CPU Fan connector(s) *1x CPU OPT Fan connector(s) *2x Chassis Fan connector(s) *2x Aura RGB Strip Headers *1x Addressable Gen 2 header(s) *1x USB 3.2 Gen 1( up to 5Gbps) konektor(s) support(s) additional 2 USB 3.2 Gen 1 port(s) *2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) *1x M.2 Socket 3 with M Key, typ 2242/2260/2280 storage devices support (SATA & PCIE 4.0 x 4 mode) *1x M.2 Socket 3 s kľúčom M, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3). mode) *1x SPI TPM header *4x SATA 6Gb/s connector(s) *1x 24-pin EATX Power connector(s) *1x 8-pin EATX 12V Power connectors *1x Front panel audio connector(s) (AAFP) * 1x Clear CMOS jumper(s) *1x System panel connector *1x COM port header *1x Speaker connector

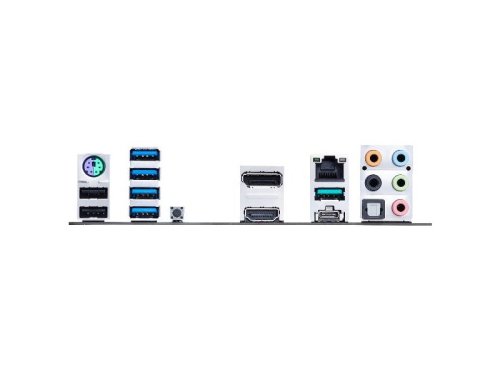

Externé porty: *1 PS/2 klávesnica/mouse combo port(s) *1x DisplayPort *1x HDMI *1x LAN (2.5G) port(s) *2x USB 3.2 Gen 2 (teal blue) (1 x Type-A+ 1 x USB Type-C®) *4x USB 3.2 Gen 1 (blue) Type-A *2x USB 2.0 *1x Optical S/PDIF out *5x Audio jack(s) *1x BIOS FlashBack™ Button(s)

Obsah balenia: *User's manual *I/O Shield *2x SATA 6Gb/s cable(s) *1x Supporting DVD *1x TUF Gaming Sticker *1x TUF Certification card(s) *1x M.2 SSD screw package(s) * 1x M.2 Rubber Package(s)

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS

Stránka výrobcu: https://www.asus.com/Motherboards/TUF-GAMING-B550M-PLUShttps://www.asus.com/microsite/motherboard/ASUS-motherboards-Win11-ready/ https://www. asus.com/support/FAQ/1046215
