Chipset: AMD B550

Rozmerový formát: ATX Form Factor (305 mm x 244 mm) Podpora pre procesory: AMD AM4 Socket pre AMD Ryzen ™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors Pätica procesora: AM4

Pozícia na pamäti: 4x DDR4 DIMM Podpora pre pamäte: *AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors 4600( OC)/4400(OC)/4333(OC)/4266(OC)/4133(OC)/4000(OC )/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory *AMD Ryzen™ 4 G-Series Processors 5100( OC)/4866(OC)/4600(OC)/4500(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000 (OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory Max.veľkosť operačnej pamäte: 128 GB Podpora pre pamäte typu: DDR4 *Dual Channel Memory Architecture *ECC Memory (ECC mode)

Grafické výstupy: *Integrated Graphics Processor (na základe procesora)

Multi GPU: AMD 2-Way CrossFireX Technology

Zvuková karta: *Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC

Sieťová karta: *Realtek RTL8125B 2.5Gb Ethernet (TUF LANGuard)

Rozširujúce sloty: * AMD Ryzen ™ 5000 Series/ 3000 Series Desktop Processors * 1x PCIe 4.0 x16 (x16 mode) * AMD Ryzen ™ 4000 G-Series Processors * 1x PCIe 3.0 x16 (x16 mode) * AMD B. (x4 mode) *3x PCIe 3.0 x1

RAID radič: 0, 1, 10

SATA: *6x SATA 6Gb/s

M.2 : * AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors : *1x M.2 Socket 3, s kľúčom M, typ 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) ™ 4000 G-Series Processors : *1x M.2 Socket 3, s M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 a SATA modes) storage devices support * AMD B550 Chipset : *1x M.2 Socket , with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 a SATA modes) storage devices support

USB: * zadné USB porty ( celkom 8 ) *2x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®) *2x USB 3.2 Gen 1 port(s)(2 x Type- A) *4x USB 2.0 port(s)(4 x Type-A) * predné USB porty ( celkom 7 ) *3x USB 3.2 Gen 1 port(s)(2 x Type-A +1 x Type-C) *4x USB 2.0 port(s)(4 x Type-A)

Interné porty: *1x CPU Fan connector(s) *1x CPU OPT Fan connector(s) *3x Chassis Fan connector(s) *1x AIO_PUMP connector *2x Aura RGB Strip Headers *2x Addressable Gen 2 header(s) *1x USB 3.2 Gen 1 front panel TypeC™ konektor *1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) *2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) *1x M.2 Socket 3 s kľúčom M, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) *1x M.2 kód so Socket 3 s typom 2242 /2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) *1x M.2 s kľúčom E na Wi-Fi module *1x SPI TPM header *6x SATA 6Gb/s konektor(s) *1x Thunderbolt header (s) *1x 24-pin EATX Power connector(s) *1x 8-pin ATX 12V Power connector(s) *1x 4-pin ATX 12V Power connector(s) *1x Front panel audio connector(s) (AAFP) *1x Thermal sensor connector(s) *1x Clear CMOS jumper(s) *1x System panel connector *1x COM port header

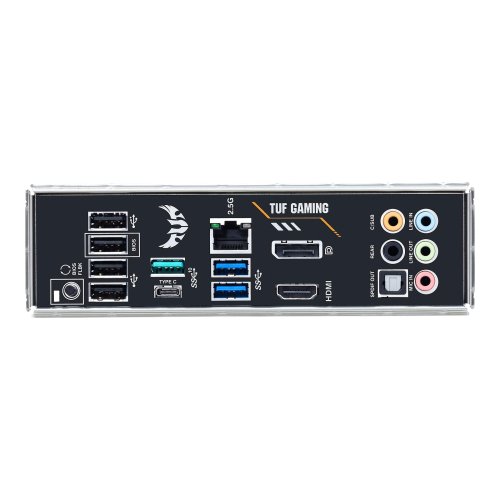

Externé porty: *1x DisplayPort *1x HDMI *1x LAN (2.5G) port(s) *2x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®) *2x USB 3.2 Gen 1 (blue) Type-A *4x USB 2.0 (1 port môže byť prepojená na USB BIOS FlashBack™) *1x Optický S/PDIF out *5x Audio jack(s) *1x BIOS FlashBack™ Button(s)

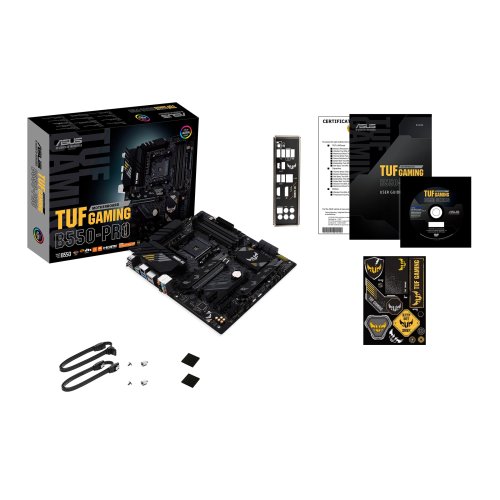

Obsah balenia: *User's manual *I/O Shield *2x SATA 6Gb/s cable(s) *1x Supporting DVD *1x TUF Gaming Sticker *1x TUF Certification card(s) *1x M.2 SSD screw package(s ) *1x M.2 Rubber Package(s)

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS

Stránka výrobcu: https://www.asus.com/Motherboards-Components/Motherboards/All-series/TUF-GAMING-B550-PROhttps://www.asus.com/microsite/motherboard/ASUS-motherboards-Win11- ready/ https://www.asus.com/support/FAQ/1046215
