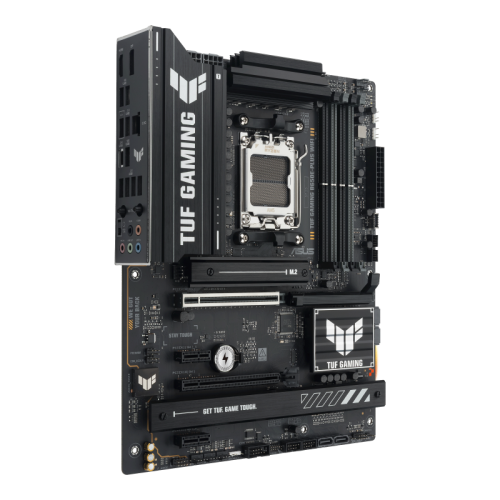

ASUS TUF GAMING B650E-PLUS WIFI využíva všetky základné prvky najnovšej zásuvky AM5 pre stolné procesory AMD Ryzen™ a kombinuje ich s funkciami pripravenými na hry a overenou odolnosťou.
Základná doska, navrhnutá s komponentmi vojenskej kvality, vylepšeným riešením napájania a komplexným chladiacim systémom, presahuje očakávania so skalopevným a stabilným výkonom pre maratónske hranie. Základné desky TUF GAMING taktiež prechádzajú prísnym testovaním odolnosti, aby sa zaistilo, že zvládnu podmienky, v ktorých ostatní môžu selhať.
Z estetického hľadiska tento model obsahuje robustné, tmavočierne a geometrické dizajnové prvky, ktoré odrážajú spoľahlivosť a stabilitu, ktorá definuje sériu TUF GAMING.
Táto platforma poskytuje výkon a konektivitu, ktoré vyžadujú pokročilé AI PC aplikácie.


Model
TUF GAMING B650E-PLUS WIFI

AMD Socket AM5 pre AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*

• Refer to https://www.asus.com/support/download-center/ for CPU support list.

  Chipset
  AMD B650 Chipset

  Memory
  4 x DIMM slots, max. 256GB, DDR5
  Supports up to 8000+MT/s (OC) s Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*
  Dual channel memory architecture
  Supports AMD Extended Profiles for Overclocking (EXPO™)
  ASUS Enhanced Memory Profile (AEMP)

• Adjustments budú urobené na základe špecifikácií masovo-výrobných značiek produkovaných na trhu.

• Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of production information site or visit https://www.asus.com/support/download-cent-center

• Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

  Graphics
  1 x DisplayPort**
  1 x HDMI™ port***

• Graphics specifications majú vary between CPU types. Please refer to AMD CPU specifications.
  ** Supports max. 8K@30Hz a špecifikované v DisplayPort 1.4.
  *** Supports 4K@60Hz a špecifikované v HDMI 2.1.

  Expansion Slots
  AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
  1 x PCIe 5.0 x16 slot (supports x16 mode)
  AMD Ryzen™ 8000 Series Desktop Processors
  1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
  AMD B650 Chipset
  1 x PCIe 4.0 x16 slot (supports x4 mode) *
  2 x PCIe 4.0 x1 slots

• Pozrite si PCIe bifurcation table on the support site ( https://www.asus.com/support/FAQ/1037507/ ).
  ** Specifications vary by CPU types.
  *** The PCIEX16(G4) shares bandwidth with M.2_3 . The PCIEX16(G4) will be disabled when M.2_3 runs.


• Ak chcete získať kompatibilitu zariadenia inštalovaný, prosím referte na https://www.asus.com/support/download-center/ pre list podporovaných peripherals.

  Storage
  Total supports 3 x M.2 slots a 4 x SATA 6Gb/s ports
  AMD Ryzen™ 9000 & 7000 Series Desktop Processors
  M.2_1 slot (Key M), typ 2280 (supports PCIe 5.0 x4 mode)
  M.2_2 slot (Key M), typ 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
  AMD Ryzen™ 8000 Series Desktop Processors
  M.2_1 slot (Key M), typ 2280 (supports PCIe 4.0 x4 mode)
  M.2_2 slot (Key M), typ 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode)*
  AMD B650 Chipset
  M.2_3 slot (Key M), typ 2280 (supports PCIe 4.0 x4 mode)**
  4 x SATA 6Gb/s ports


• Specifications vary by CPU types.
  ** The PCIEX16(G4) shares bandwidth with M.2_3 . The PCIEX16(G4) will be disabled when M.2_3 runs.
  AMD RAIDXpert2 Technology
  Ryzen™ 9000 Series Processors: RAID 0/1/5/10
  Ryzen™ 8000 Series Processors: RAID 0/1
  Ryzen™ 7000 Series Processors: RAID 0/1/10

  Ethernet
  1 x Realtek 2.5Gb Ethernet
  TUF LANGuard

  Wireless & Bluetooth
  Wi-Fi 6E
  2x2 Wi-Fi 6E (802.11ax)
  Supports 2.4/5/6GHz frequency band*
  Bluetooth® v5.3**

• WiFi 6E 6GHz regulátory majú vary medzi krajinami, supported only in Windows 11 or later
  ** The Bluetooth® verzia má vary, prosím referuje na Wi-Fi module manufacturer webovej stránky pre najnovšie špecifickosti.

  USB
  Rear USB (Total 10 ports)
  1 x USB 20 Gbps port (1 x USB Type-C®)
  3 x USB 10 Gbps ports (3 x Type-A)
  6 x USB 2.0 ports (6 x Type-A)
  Front USB (Total 7 ports)
  1 x USB 10Gbps konektor (supports USB Type-C®)
  1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  2 x USB 2.0 headers support 4 additional USB 2.0 ports

• USB Type-C power delivery output: max. 5V/3A.

  Audio
  Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC


• Impedancia pre front a rear headphone outputs

• Internal audio Amplifier k rozšíreniu vysokej kvality zvuku pre headphone and speakers

• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

• High quality 120 dB SNR stereo playback output a 113 dB SNR recording input (Line-in)

• Supports up to 32-bit/192 kHz playback*

  Audio Features

• Audio Shielding

• Premium audio capacitors

• Dedicated audio PCB layers

• Audio cover

• Unique de-pop circuit


• Zvyšuje limity v HDA bandwidth, 32-bit/192 kHz a nie je supported for 7.1 Surround Sound audio.

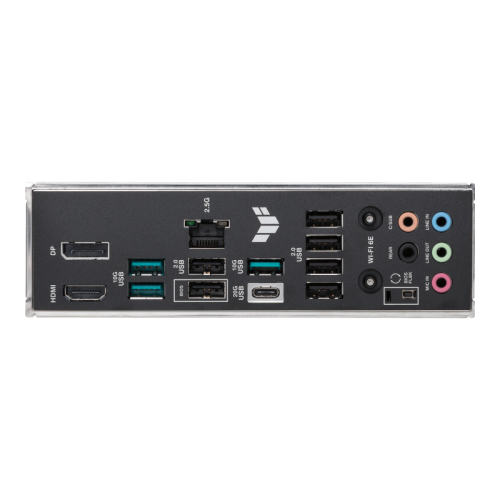

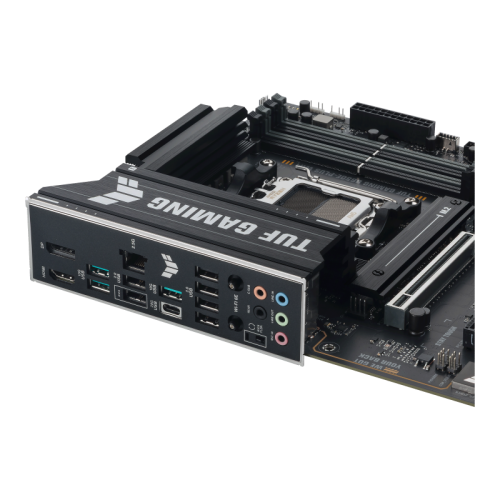

  Back Panel I/O Ports
  1 x USB 20 Gbps port (1 x USB Type-C®)
  3 x USB 10 Gbps ports (3 x Type-A)
  6 x USB 2.0 ports (6 x Type-A)
  1 x DisplayPort
  1 x HDMI™ port
  1 x Wi-Fi module
  1 x Realtek 2.5Gb Ethernet port
  5 x Audio jacks
  1 x BIOS FlashBack™ button

  Internal I/O Connectors
  Fan and Cooling Related
  1 x 4-pin CPU Fan header
  1 x 4-pin CPU OPT Fan header
  1 x 4-pin AIO Pump header
  4 x 4-pin Chassis Fan headers
  Power Related
  1 x 24-pin Main Power connector
  2 x 8-pin +12V CPU Power connectors
  Storage Related
  3 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
  USB
  1 x USB 10Gbps konektor (supports USB Type-C®)
  1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  2 x USB 2.0 headers support 4 additional USB 2.0 ports
  Miscellaneous
  3 x Addressable Gen 2 headers
  1 x Clear CMOS header
  1 x Chassis Intrusion header
  1 x COM Port header
  1 x Front Panel Audio header (F_AUDIO)
  1 x 10-1 pin Front System Panel header
  1 x Thunderbolt™ (USB4®) header

  Special Features
  ASUS TUF PROTECTION


• DIGI+ VRM (- Digital power design with DrMOS)

• ESD Guards

• TUF LANGuard

• Overvoltage protection

• SafeSlot

• Stainless-steel back I/O
  ASUS Q-Design

• M.2 Q-Latch

• PCIe Slot Q-Release

• Q-Antenna

• Q-DIMM

• Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  ASUS Thermal Solution

• M.2 heatsink

• VRM heatsink design
  ASUS EZ DIY

• BIOS FlashBack™ button

• BIOS FlashBack™ LED

• ProCool

• Pre-mounted I/O shield

• SafeDIMM
  Aura Sync

• Addressable Gen 2 headers

  Softvér Features
  ASUS Exclusive Software
  Armoury Crate

• Aura Creator

• Aura Sync

• Fan Xpert 4

• Two-Way AI Noise Cancelation
  AI Suite 3

• TurboV EVO

• DIGI+ VRM

• PC Cleaner
  ASUS DriverHub
  TUF GAMING CPU-Z
  DTS Audio Processing
  Adobe Creative Cloud (Free Trial)
  Norton 360 for Gamers (60 Days Free Trial)
  WinRAR (40 Days Free Trial)
  UEFI BIOS
  ASUS EZ DIY

• ASUS CrashFree BIOS 3

• ASUS EZ Flash 3

• ASUS UEFI BIOS EZ Mode

  BIOS
  256 Mb Flash ROM, UEFI AMI BIOS
  Manageability
  WOL by PME, PXE

  Accessories
  Cables
  2 x SATA 6Gb/s cables
  Miscellaneous
  1 x ASUS WiFi Q-Antenna
  1 x TUF GAMING sticker
  2 x M.2 rubber packages
  Documentation
  1 x Quick štart guide

  Operating System
  Windows 11, Windows 10 64-bit

  Form Factor
  ATX Form Factor
  12 palcov x 9.6 palcov (30.5 cm x 24.4 cm)
