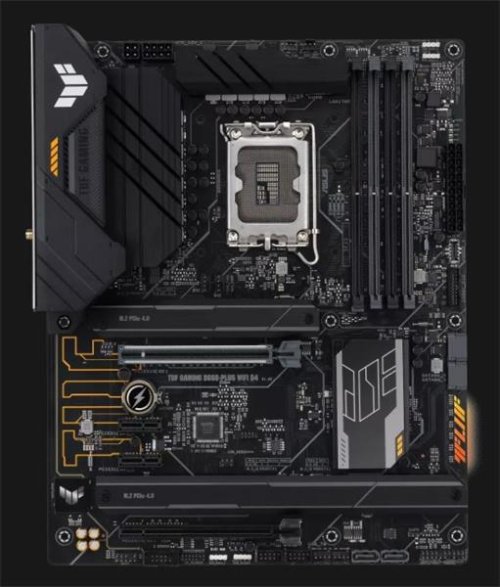

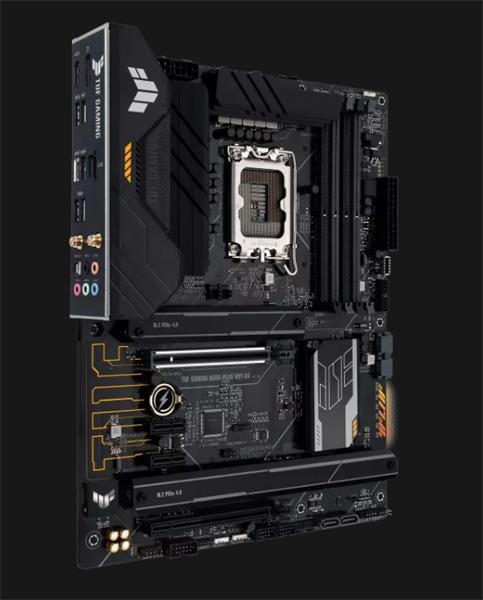

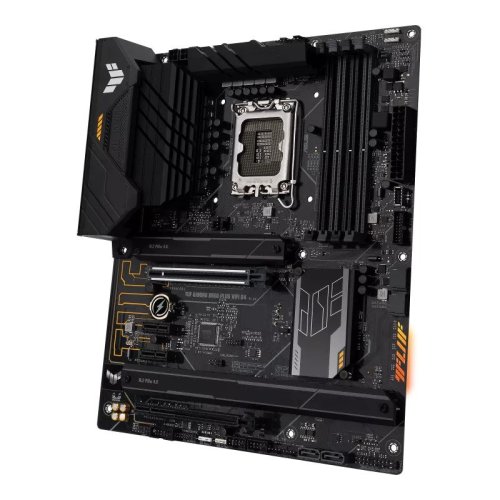

Základná deska Intel® B660 (LGA 1700) ATX so slotom PCIe 5.0, tromi sloty PCIe 4.0 M.2 , 10+1 DrMOS, Intel® 2,5 Gb Ethernet, DisplayPort, HDMI, predný USB 3.2 Gen 2 Type-C®, Aura Sync
Patica Intel® LGA 1700: Pripravená pre procesory Intel® 12. a 13. generacie
Vylepšené riešenie napájania: 10+1 výkonových stupňov DrMOS, šesťvrstvová deska plošných spojov, 8+4 patice ProCool, komponenty TUF na vojenskej úrovni a Digi+ VRM pre maximálnu odolnosť
Komplexné chladenie: Zväčšený chladič VRM, Stack Cool 3+, chladiče M.2 , chladič PCH, hybridné hlavičky ventilátorov a nástroj Fan Xpert 4
Najnovšie možnosti pripojenia: slot PCIe 5.0, sloty PCIe 4.0 M.2 , zadný USB 3.2 Gen 2x2 Type-C®, hlavička na prednom paneli pre podporu USB 3.2 Gen 2 Type-C® a Thunderbolt 4™
Vyrobené pre online hranie: Intel WiFi 6, Intel 2,5 Gb Ethernet, TUF LANGuard
Obousmerné potlačenie hluku AI: Znižuje hluk pozadia z mikrofónu a zvukového výstupu pre krištáľovo čistú komunikáciu v hrách alebo videokonferenciách

Technická špecifikácia

CPU
Intel® Socket LGA1700 pre 12., 13. Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel Turbo Boost Technology 2.0 a Intel Turbo Boost Max Technology 3.0 **

• Refer to www.asus.com pre CPU support list.
  ** Intel® Turbo Boost Max Technology 3.0 podporuje depends on the CPU types.

  Chipset
  Intel® B660 Chipset

  Memory
  4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600( OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
  Dual Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)
  OptiMom II
  Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

  Graphics
  1 x DisplayPort *
  1 x HDMI® port***

• Graphics specifications majú vary between CPU types. Please refer to na www.intel.com for any updates.
  **Supporty 4K@60Hz a špecifikované v DisplayPort 1.4.
  ** Supports 4K@60Hz as specified in HDMI 2.1.

  Expansion Slots
  Intel® 12th Gen Processors
  1 x PCIe 5.0/4.0/3.0 x16 slot(s)
  Intel® B660 Chipset
  1 x PCIe 3.0 x16 slot (supports x4 mode)
  2 x PCIe 3.0 x1 slots

• Supports Intel® Optane Memory H Series on PCH-attached PCIe slot

  Storage
  Total supports 3 x M.2 slotov a 4 x SATA 6Gb/s ports*
  Intel® 12th Gen Processors
  M.2_1 slot (Key M), typ 2242/2260/2280/22110


• Intel® 12th Gen processors support PCIe 4.0 x4 mode.
  Intel® B660 Chipset**
  M.2_2 slot (Key M), typ 2242/2260/2280 (supports PCIe 4.0 x2 mode)
  M.2_3 slot (Key M), typ 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
  4 x SATA 6Gb/s ports


• Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
  ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.

  Ethernet
  1 x Intel® 2.5Gb Ethernet
  TUF LANGuard

  Wireless & Bluetooth
  Wi-Fi 6
  2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
  Supports 2.4/5GHz frequency band
  Bluetooth v5.2

  USB
  Rear USB (Total 6 ports)
  1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)
  1 x USB 3.2 Gen 2 port(s) (1 x Type-A)
  3 x USB 3.2 Gen 1 port(s) (3 x Type-A)
  1 x USB 2.0 port(s) (1 x Type-A)

  Front USB (Total 7 ports)
  1 x USB 3.2 Gen 2 konektor (supports USB Type-C®)
  1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
  2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

  Audio
  Realtek 7.1 Surround Sound High Definition Audio CODEC*


• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

• Supports up to 24-bit/192 kHz playback

  Audio Features

• Rear optical S/PDIF out port

• Premium audio capacitors

• Dedicated audio PCB layers

• Audio cover

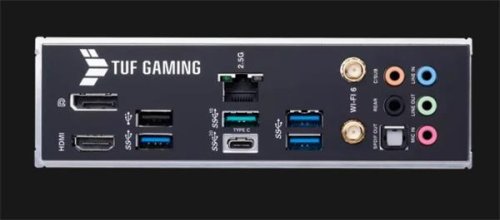

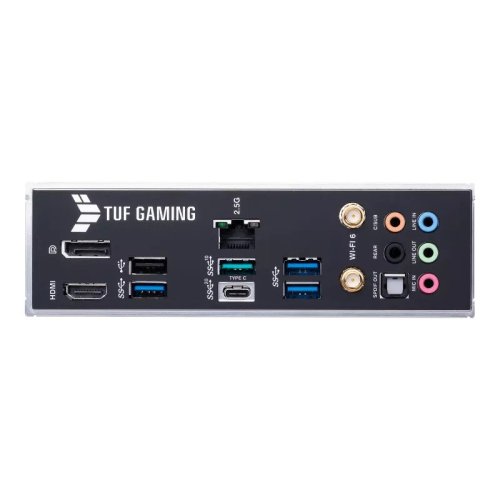

  Back Panel I/O Ports
  1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)
  1 x USB 3.2 Gen 2 port(s) (1 x Type-A)
  3 x USB 3.2 Gen 1 port(s) (3 x Type-A)
  1 x USB 2.0 port(s) (1 x Type-A)
  1 x DisplayPort
  1 x HDMI® port
  1 x Wi-Fi Module
  1 x Intel® 2.5Gb Ethernet port
  5 x Audio jacks
  1 x Optical S/PDIF out port

  Internal I/O Connectors
  Fan and Cooling related
  1 x 4-pin CPU Fan header(s)
  1 x 4-pin CPU OPT Fan header(s)
  1 x 4-pin AIO Pump header(s)
  3 x 4-pin Chassis Fan header(s)

  Power related
  1 x 24-pin Main Power connector
  1 x 8-pin +12V Power connector
  1 x 4-pin +12V Power connector

  Storage related
  3 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports

  USB
  1 x USB 3.2 Gen 2 konektor (support(s) USB Type-C®)
  1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
  2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

  Miscellaneous
  3 x Addressable Gen 2 header(s)
  1 x AURA RGB header(s)
  1 x Clear CMOS header
  1 x COM Port header
  1 x Front Panel Audio header (AAFP)
  1 x 20-3 pin System Panel hlavy s Chassis intrude function
  1 x Thunderbolt™ header

  Special Features
  ASUS TUF PROTECTION

• DIGI+ VRM (- Digital power design with DrMOS)

• Enhanced DRAM Overcurrent Protection

• ESD Guards

• TUF LANGuard

• Overvoltage Protection

• Safeslot

• Stainless-Steel Back I/O
  ASUS Q-Design

• M.2 Q-Latch

• Q-DIMM

• Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

• Q-Slot
  ASUS Thermal Solution

• M.2 heatsink

• VRM heatsink design
  ASUS EZ DIY

• CPU Socket lever protector

• ProCool

• Pre-mounted I/O shield

• SafeDIMM
  AURA Sync

• AURA RGB header(s)

• Addressable Gen 2 header(s)

  Softvér Features
  ASUS Exclusive Software
  Armoury Crate

• AURA Creator

• AURA Sync

• Fan Xpert 4

• Two-Way AI Noise Cancelation
  AI Suite 3

• Performance And Power Saving Utility
  TurboV EVO
  EPU
  DIGI+ VRM
  TUF GAMING CPU-Z
  DTS Audio Processing
  MyAsus
  Norton Anti-virus softvér (Free Trial version)
  WinRAR
  UEFI BIOS
  ASUS EZ DIY

• ASUS CrashFree BIOS 3

• ASUS EZ Flash 3

• ASUS UEFI BIOS EZ Mode

  BIOS
  128 Mb ROM, UEFI AMI BIOS

  Manageability
  WOL by PME, PXE

  Accessories
  Cables
  2 x SATA 6Gb/s cables

  Miscellaneous

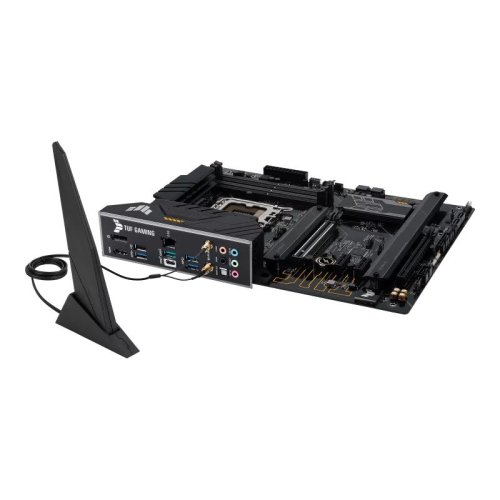

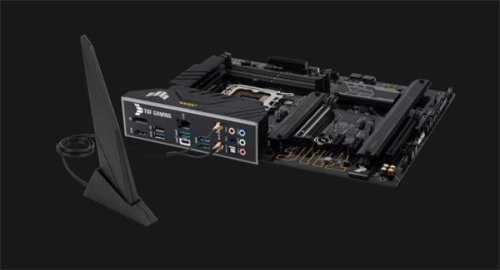

  1 x ASUS Wi-Fi moving antennas
  2 x M.2 Rubber Package(s)
  1 x M.2 SSD screw package(s)

  Installation Media
  1 x Support DVD

  Documentation
  1 x TUF Certification card
  1 x User guide

  Operating System
  Windows® 11 64-bit, Windows® 10 64-bit

  Form Factor
  ATX Form Factor
  12 palcov x 9.6 palcov (30.5 cm x 24.4 cm)
