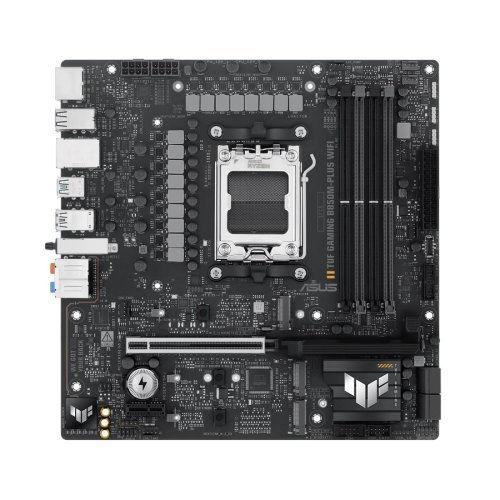

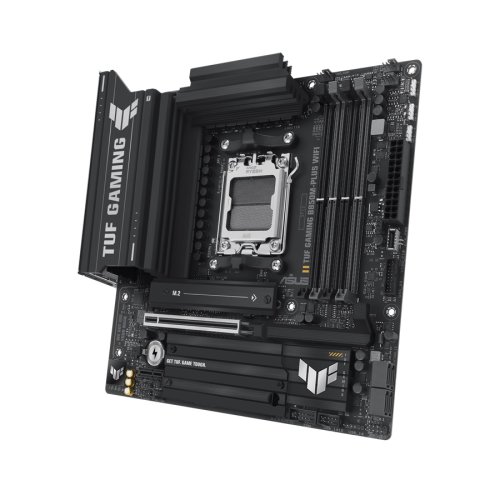

ASUS TUF B850M-PLUS WIFI

• mATX Form Factor

CPU: AMD Socket AM5 pre AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Chipset: AMD B850 Chipset

Pamäť: *4 x DIMM slots, max. 192GB, DDR5 - Podpora až 8000+MT/s (OC) s procesormi Ryzen™ radu 9000 a 8000 a 7000, ECC a *Non-ECC Un-buffered DIMM *Dvojkanálová pamäťová architektúra *Podpora rozšírených profilov AMD pre pretaktovanie (EX *ASUS Enhanced Memory Profile (AEMP)

Grafické porty: *1 x DisplayPort *1 x HDMI port

Rozširujúce sloty: AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot (support x 16 mode) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (support x8 PCIe 4.0 x1 slot

Úložný priestor: Total supports 3 x M.2 slotov a 4 x SATA 6 Gb/s portov AMD Ryzen™ 9000 & 7000 Series Desktop Processors * M.2_1 slot (Key M), typ 2280 (supports PCIe 5.0 x4 mode) * M. 2_2 slot (Key M), typ 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors * M.2_1 slot (Key M), typ 2280 (supports PCIe 4.0 x4 mode) * M.2_2 slot (Key M), type /2260/2280 (supports PCIe 4.0 x4/x2 mode) AMD B850 Chipset * M.2_3 slot (Key M), typ 2280 (supports PCIe 4.0 x4 mode) *4 x SATA 6Gb/s ports

Ethernet: *1 x Realtek 2.5Gb Ethernet *TUF LANGuard

Pripojenie a Bluetooth: *Wi-Fi 6E 2x2 Wi-Fi 6E (802.11ax) Supports 2.4/5/6GHz frequency band Bluetooth® v5.3

USB: Zadný USB (Total 12 ports) * 1 x USB 20 Gbps port (1 x USB Type-C®) * 3 x USB 10 Gbps ports (3 x Type-A) * 4 x USB 5 Gbps ports (4 x Type-A) *4 x USB 2.0 ports (4 x Type-A) Predné USB (Total 6 ports) *1 x USB 10Gbps connector (supports USB Type-C®) *1 x USB 5Gbps header supports 2 additional USB 5Gbps ports *2 x USB 2.0 headers support 3 additional USB 2.0 ports

Audio: Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC

*Audio Shielding *Premium audio capacitors *Dedicated audio PCB layers *Audio cover *Unique de-pop circuit

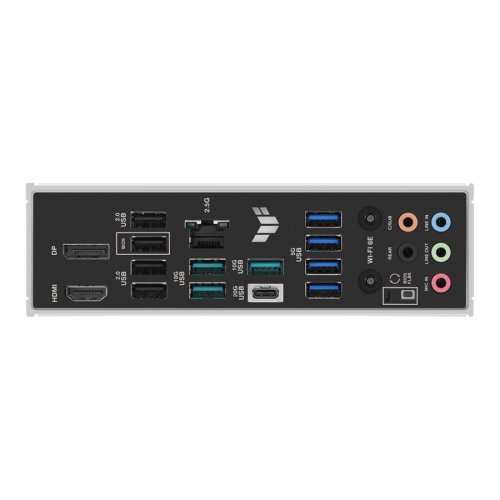

Vstupy/výstupy zadného panela: *1 x USB 20 Gbps port (1 x USB Type-C®) *3 x USB 10 Gbps ports (3 x Type-A) *4 x USB 5 Gbps ports (4 x Type-A) *4 x USB 2.0 ports (4 x Type-A) *1 x DisplayPort *1 x HDMI port *1 x Wi-Fi module *1 x Realtek 2.5Gb Ethernet port *5 x Audio jacks *1 x BIOS FlashBack™ button

Interné vstupy/výstupy: Ventilátory a chladenie: *1 x 4-pin CPU Fan header *1 x 4-pin CPU OPT Fan header *1 x 4-pin AIO Pump header *3 x 4-pin Chassis Fan headers

Napájanie: *1 x 24-pin Main Power connector *2 x 8-pin +12V CPU Power connectors

Úložisko: *3 x M.2 slots (Key M) *4 x SATA 6Gb/s ports

USB: *1 x USB 10Gbps konektor (supports USB Type-C®) *1 x USB 5Gbps header supports 2 additional USB 5Gbps ports *2 x USB 2.0 headers support 3 additional USB 2.0 ports

Rôzne: *3 x Addressable Gen 2 headers *1 x Clear CMOS header *1 x Chassis Intrusion header *1 x COM Port header *1 x Front Panel Audio header (F_AUDIO) *1 x 10-1 pin Front System Panel header

Príslušenstvo: Káble: *2 x SATA 6Gb/s cables Rôzne: *1 x ASUS WiFi Q-Antenna *1 x TUF GAMING nálepka *2 x M.2 rubber packages *1 x Screw package for M.2 SSD Dokumenty: *1 x Quick start guide
