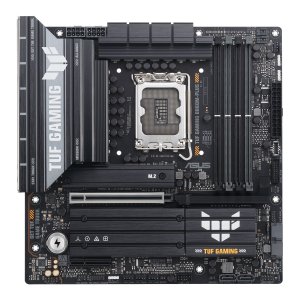

ASUS TUF GAMING B860M-PLUS

• mATX Form Factor

CPU: Support Intel® Core™ Ultra Processors (Series 2) LGA1851, Supports Intel® Turbo Boost Technology 2.0 a Intel® Turbo Boost Max Technology 3.0

Chipset: Intel® B860 Chipset

Pamäť: 4 x DIMM slots, max. 192GB, DDR5 - Support up to 8800+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM) *Dvojkanálová pamäťová architektúra *Osadenie DIMM *Podporuje pamäťový modul Intel® Extreme Memory Profile (XMP) ASUS Enhanced Memory Profile III(AEMPIII)

Grafické porty: 1 x DisplayPort * 1 x HDMI port ** * 1 x USB 20 Gbps port (USB Type-C®) supports DisplayPort video output

Rozširujúce sloty: Intel Core Ultra Processors (series 2) *1 x PCIe 5.0 x16 slot Intel B860 Chipset *1 x PCIe 4.0 x4 slot

Úložný priestor: Total supports 3 x M.2 slotov a 4 x SATA 6 Gb/s portov Intel® Core™ Ultra Processors (series 2) * M.2_1 slot (Key M), typ 2280 (supports PCIe 5.0 x4 mode) Intel® B860 Chipset * M.2_2 slot (Key M), typ 2242/2260/2280 (supports PCIe 4.0 x4 mode) * M.2_3 slot (Key M), typ 2280 (supports PCIe 4.0 x4 mode) *4 x SATA 6Gb/s ports

Ethernet: *1 x Realtek 2.5Gb Ethernet *TUF LANGuard

USB: Zadný USB (Total 7 portov) * 1 x USB 20 Gbps port (1 x USB Type-C®) * 2 x USB 10 Gbps ports (2 x Type-A) * 4 x USB 5 Gbps ports (4 x Type-A) * 1 x USB 2.0 port (1 x Type-A)

Predné USB (Total 7 ports) *1 x USB 10Gbps konektor (supports USB Type-C®) *1 x USB 5Gbps header supports 2 additional USB 5Gbps ports *1 x USB 2.0 headers support 2 additional USB 2.0 ports

Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC Audio Features *Audio Shielding *Rear optical S/PDIF out port *Premium audio capacitors *Dedicated audio PCB layers

Vstupy/výstupy zadného panela: *1 x 20 Gbps USB port (1 x Type-C® USB s DP Alt mode) *2 x 10 Gbps USB porty (2 x Type-A) *4 x USB 5 Gbps porty (4 x Type-A ) *1 x USB 2.0 port (1 x Type-A) *1 x DisplayPort *1 x HDMI™ port *1 x Realtek 2.5Gb Ethernet port *5 x Audio jacks *1 x Optical S/PDIF out port

Interné vstupy/výstupy: Ventilátory a chladenie: *1 x 4-pin CPU Fan header *1 x 4-pin CPU OPT Fan header *1 x 4-pin AIO Pump header *3 x 4-pin Chassis Fan headers Napájanie: *1 x 24-pin Main Power connector *2 x 8-pin +12V CPU Power connectors Úložisko: *3 x M.2 slots (Key M) *4 x SATA 6Gb/s ports USB: *1 x USB 10Gbps konektor (supports USB Type-C® ) *1 x USB 5Gbps header supports 2 additional USB 5Gbps ports *1 x USB 2.0 header supports 2 additional USB 2.0 ports Rôzne: *3 x Addressable Gen 2 headers *1 x Clear CMOS header *1 x Chassis Intrusion header *1 x Front panel audio header (F_AUDIO) *1 x 10-1 pin Front System Panel header *1 x Thunderbolt™ (USB4®) header

Príslušenstvo: Káble: *2 x SATA 6Gb/s cables Rôzne: *2 x M.2 Rubber Packages *1 x TUF Gaming sticker *1 x Screw package for M.2 SSD Dokumenty: *1 x Quick start guide
