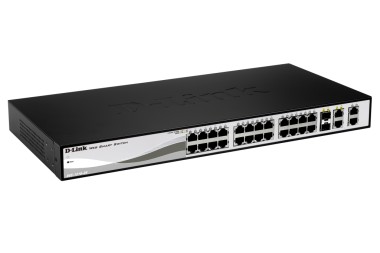

DGS-1210-28MP: 28-port Gigabit Max PoE Smart Managed Switch including 4 SFP ports (24 x PoE ports, fan)
Features

Green Technology

Power saving via the following features:
Link Status detection
LED Shut-Off
Port Shut-Off
System Hibernation
Time-based PoE (DGS-1210-10P/28P/52P/52MP only)

Security Features

Access Control List secures network
D-Link Safeguard Engine protects CPU z Broadcast/Multicast/Unicast Flooding
Port Security supports 64 MACs per port
ARP Spoofing Prevention

Intuitive Management

D-Link Network Assistant Utility alebo Web-based GUI
Built-in SNMP MIB pre remote NMS (D-View 6.0)
Compact CLI cez Telnet

Advanced Features

Auto Surveillance VLAN
Loopback Detection automatically disables a port keď loop is detected
Cable Diagnostics allows administrators to determine cable status
SFP ports for flexibility
Auto MDI/MDIX

Interface

Number of 10/100/1000BASE-TX ports
DGS-1210-28/28P/28MP - 24 portov

Number of SFP ports
DGS-1210-20/28/28P/28MP/52/52P/52MP - 4 ports

PoE Supported Models (Štandard(s)/Number of Ports/Maximum Power Budget)
DGS-1210-28MP (802.3af/802.3at/24 ports/370W)

Performance

Switch Capacity
DGS-1210-28/28P/28MP - 56 Gbps


64-Byte Packet Forwarding Rate
DGS-1210-28/28P/28MP - 41.7 Mpps


MAC Address Table Size

16K

Packet Buffer
DGS-1210-10/20/28/28P/28MP - 1.5 MB per device

Jumbo Frame

Up to 9,216 Bytes

Physical & Environmental

Power Consumption (Standby/Maximum)
DGS-1210-28MP - 33.1W / 454.4W (PoE)

Power Input

10 to 240 VAC, 50/60 HZ internal universal power supply

Dimensions (W x D x H)
DGS-1210-28MP - 440 x 250 x 44 mm

Weight
DGS-1210-28MP - 3.86 kg

Ventilation
DGS-1210-28MP - smart fanúšikov

Heat Dissipation
DGS-1210-28MP - 1,552.32 BTU per hour


Temperature

Operating: -5° až 50°C (23° až 112°F)
Storage: -20° až 70°C (-4° až 158°F)

Humidity

Operating: 0% ~ 95% non-condensing
Storage: 0% ~ 95% non-condensing

Certification

CE A, VCCI A, FCC A, cUL, CE (LVD), BSMI, CCC, C-Tick

Softvér Feature

L2 Features

MAC Address Table
16K entries
IGMP Snooping
IGMP v1/v2 Snooping
Supports 256 IGMP groups
Supports at least 64 static multicast addresses
IGMP per VLAN
Supports IGMP Snooping Querier
Loopback Detection
802.3ad Link Aggregation:
DGS-1210 28/28P/28MP: Maximum 14 skupín/8 portov na skupinu
DGS-1210 52/52MP/52P: Maximum 26 skupín/8 portov na skupinu
DGS-1210 -10/10P: Maximum 5 skupín/8 portov na skupinu
LLDP
LLDP-MED
Jumbo Frame
Up to 9,216 bytes
Spanning Tree Protocol
802.1D STP
802.1w RSTP
802.1s MSTP (for DGS-1210-28MP only)
Flow Control
802.3x Flow Control
HOL Blocking Prevention
Port Mirroring
One-to-One
Many-to-One
Supports Mirroring for Tx/Rx/Both
Multicast Filtering
Forwards all unregistered groups
Filtery all unregistered groups
Configurable MDI/MDIX
MLD snooping v1/v2 (256 groups)

VLAN

802.1Q
VLAN Group
Max. 256 static VLAN groups
Configurable VID from 1 - 4094
Asymmetric VLAN
Auto Voice VLAN
Max. 10 user-defined OUI
Max. 8 default OUI
Auto Surveillance VLAN

Quality of Service (QoS)

802.1p Quality of Service
8 queues per port
Queue Handling
Strict
Weighted Round Robin (WRR)
Bandwidth Control
Port-based (Ingress/Egress, min granularity 10/100/1000 is 64 Kbps)
QoS založené na:
802.1p Priority Queues
DSCP
ToS
IPv6 Traffic Class
TCP/UDP port

L3 Features

IP Interface
Supports 1 interface
IPv6 Neighbor Discovery (ND)
Static Routing (for DGS-1210-28MP only)
64 IPv4 Static Route Entries
32 IPv4 Static Route Entries

Access Control List (ACL)

Max. 50 access list
Max. 768 rules shared by IPv4, MAC a IPv6
Každá ruka môže byť spoločne s jedným portom
ACL založený
802.1p priority
VLAN
MAC address
Ether type
IP address
DSCP
Protocol type
TCP/UDP port number
IPv6 Traffic Class

Security

Broadcast/Multicast/Unicast Storm Control
D-Link Safeguard Engine
DHCP Server Screening
IP-MAC-Port Binding (Smart Binding)
Supports 512 address binding entries
ARP Inspection
ARP + IP Inspection
Supports DHCP Snooping
802.1X Port-based Access Control
ARP Spoofing Prevention
Max. 64 entries
Traffic Segmentation
SSH v2
SSL
