Informácie k záruke:
Na produkt je poskytovaná obmedzená doživotná záruka, to znamená, že záručná lehota vyprší až päť rokov po tom, čo spoločnosť D-Link (alebo jej nástupca) ukončí predaj daného produktu v Európe.
Pre nárok na obmedzenú doživotnú záruku je potrebné produkt zaregistrovať (viď nižšie) u D-Link Europe do tridsiatich (30) dní od dátumu zakúpenia. Registráciu je možné vykonať cez samoobslužný portál.

http://www.dlink.com/sk/sk/support/product-registration-and-support-log-in

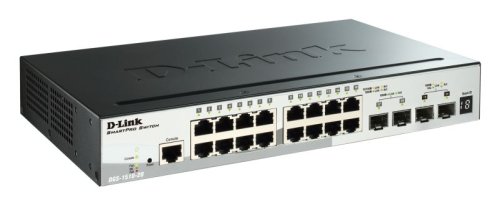

DGS-1510-20: 20-Port Gigabit Stackable Smart Managed Switch including 2 10G SFP+ a 2 SFP ports (smart fans)

OVERVIEW
DGS-1510 Series je D-Link' s poslednou generáciou SmartPro spínačov s 10G port connectivity, ktoré majú ideálny pre deployment v SME/SMB core environments. DGS-1510 Series ponúka a reliable, scalable, a modulárne interconnection medzi core switches a edge switches with rich capabilities and simplified flexibility. Available in 16, 24 or 48 10/100/1000 Mbps port modely, tieto prepínače zahŕňajú aj 2 Gigabit SFP porty a 2 10G SFP+ porty.

SPECIFICATIONS
GENERAL
Port Standards & Functions
• IEEE 802.3 10BASE-T Ethernet
• IEEE 802.3u 100BASE-TX Fast Ethernet
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet
• 802.3ae 10 GbE,
• IEEE 802.3x Flow Control pre Full-Duplex Mode,
• Auto-negotiation

Number of Ports
• 16 10/100/1000 Mbps, 2 Gigabit SFP, 2 10G SFP+

Network Cables
• UTP Cat. 5, Cat. 5e (100 m max.) EIA/TIA-568 100-ohm STP (100 m max.)

Full/Half Duplex
• Full/half duplex for 10/100 Mbps and Gigabit speed

Media Interface Exchange
• Auto alebo configurable MDI/MDIX

PERFORMANCE
Switching Capacity
• 76 Gbps

Transmission Method
• Store-and-forward

MAC Address Table
• 16,000 entries per device

MAC Address Update
• Up to 512 static MAC entries,
• Enable/disable auto-learning of MAC addresses

Maximum 64 bytes Packet Forwarding Rate
• 56.54 Mpps

Packet Buffer Memory
• 1.5 MB per device

PHYSICAL & ENVIRONMENTAL
AC Input
• 100 až 240 VAC 50/60 Hz internal universal power supply

Maximum Power Consumption
• 20.3 W

Standby Power Consumption
• 12.2 W

Smart Fan Quantity
• 1

Acoustics
• 43.8 dB(A)

Heat Dissipation
• 41.602 BTU/hr

Operation Temperature
• -5 až 50 °C

Storage Temperature
• -20 až 70 °C

Operation Humidity
• 0% až 95% non-condensing

Storage Humidity
• 0% až 95% non-condensing

Dimensions
• 280 x 180 x 44 mm (11 x 7.09 x 1.73 inches)
• 19” štandard rack mounting width, 1U height

Weight
• 1.24 kg

Diagnostic LEDs
• Power/Stacking ID/Fan (per device),
• Link/Activity/Speed (per 10/100/1000 Mbps port),
• Link/Activity/Speed (per port Gigabit SFP),
• Link/Activity/Speed (per 10G SFP+ port)

Certifications
• CE, FCC, C-Tick, VCCI, BSMI, CCC
• Safety cUL, CB
