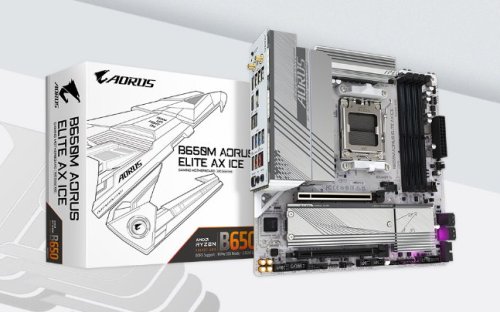

GIGABYTE B650 AORUS ELITE AX ICE
AMD Socket AM5:Supports AMD Ryzen™ 7000 Series Processors
Unparalleled Performance:Twin 12+2+2 Phases Digital VRM Solution
Dual Channel DDR5:4 DIMM s AMD EXPO™ a Intel® XMP Memory Module Support
Superfast Storage:1 PCIe 5.0 x4 a 1* PCIe 4.0 x4 M.2 Connector
Advanced Thermal Design & M.2 Thermal Guard :To Ensure VRM Power Stability & 25110 M.2 SSD Performance
EZ-Latch:PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
Fast Networks: 2.5GbE LAN & Wi-Fi 6E
Extended Connectivity: HDMI, DP, Front USB-C® 20Gb/s, Rear USB-C® 10Gb/s
Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus:Update BIOS Without Inštalácia CPU, Memory and Graphics Card


CPU

AMD Socket AM5, podporovať:
AMD Ryzen™ 7000 Series Processors

• Prečítajte si "CPU Support List" pre viac informácií.



  Chipset

  AMD B650



  Memory

  Support for DDR5 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200( OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules
  4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
  Dual channel memory architecture
  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  Support for AMD Extended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
  (CPU a pamäťová konfigurácia môže povzbudiť pamäte typov, dátumové počítanie (speed), a počet modulov DRAM, prečítajte si "Memory Support List" pre viac informácií.)



  Onboard Graphics

  Integrated Graphics Processor with AMD Radeon™ Graphics support:


• 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz


• Support for DisplayPort 1.4 verzia a HDR.



• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz


• Support for HDMI 2.1 version and HDCP 2.3.
  ** Support for native HDMI 2.1 TMDS compatible ports.

  (Graphics specifications má vary depending on CPU support.)



  Audio

  Realtek® Audio CODEC
  High Definition Audio
  2/4/5.1/7.1-channel

• Môžete zmeniť funkciu audio jack pomocou audio softvéru. To configure 7.1-channel audio, prístup k audio softvéru pre audio settings.

  Support for S/PDIF Out



  LAN

  Realtek® 2.5GbE LAN chip (2.5Gbps/1Gbps/100Mbps)



  Wireless LAN

  Realtek® Wi-Fi 6E RTL8852CE


• WIFI a, b, g, n, ac, ax, podpora 2.4/5/6 GHz carrier frequency bands

• BLUETOOTH 5.3

• Support for 11ax 160MHz bezdrôtový štandard
  (Actual data rate may vary depending on environment and equipment.)



  Expansion Slots

  CPU:

• 1 x PCI Express slot x16, supporting PCIe 4.0 a bežiaci na x16 (PCIEX16)


• Pre optimálnu performance, ak je len jeden PCI Express grafika karta je nainštalovaná, musí byť nainštalovaná v PCIEX16 slot.

  Chipset:


• 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)



  Storage

  CPU:

• 1 x M.2 konektor (Socket 3, M key, typ 25110/2280 PCIe 5.0 (Note) x4/x2 SSD support) (M2A_CPU)

• 1 x M.2 konektor (Socket 3, M key, typ 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
  Chipset:

• 4 x SATA 6Gb/s konektory
  RAID 0, RAID 1, a RAID 10 support for NVMe SSD storage devices
  RAID 0, RAID 1, a RAID 10 support for SATA storage devices



  USB

  CPU:

• 1 x USB Type-C® port na zadnom paneli, s USB 3.2 Gen 2 support

• 2 x USB 3.2 Gen 2 Type-A porty (red) on the back panel
  CPU + USB 2.0 Hub:

• 4 x USB 2.0/1.1 ports on the back panel
  Chipset:

• 1 x USB Type-C® port s USB 3.2 Gen 2x2 support, dostupný prostredníctvom vnútorného USB headeru

• 3 x USB 3.2 Gen 1 ports (1 port na back panel, 2 porty dostupný cez internal USB header)

• 4 x USB 2.0/1.1 ports dostupná cez vnútorné USB headers
  Chipset+USB 3.2 Gen 1 Hub:

• 4 x USB 3.2 Gen 1 ports on the back panel



  Internal I/O Connectors

  1 x 24-pin ATX main power connector
  1 x 8-pin ATX 12V power connector
  1 x CPU fan header
  1 x CPU fanúšik/water cooling pump header
  3 x system fan headers
  1 x systém ventilátora/water cooling pump header
  2 x addressable LED strip headers
  2 x RGB LED strip headers
  1 x CPU cooler LED strip/RGB LED strip header
  2 x M.2 Socket 3 konektory
  4 x SATA 6Gb/s konektory
  1 x front panel header
  1 x front panel audio header
  1 x USB Type-C® header, s USB 3.2 Gen 2x2 support
  1 x USB 3.2 Gen 1 header
  2 x USB 2.0/1.1 headers
  1 x serial port header
  1 x THB_U4 add-in card connector
  1 x Trusted Platform Module pre hlavu (For GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
  1 x reset button
  1 x reset jumper
  1 x Clear CMOS jumper



  Back Panel Connectors

  1 x Q-Flash Plus button
  2 x SMA antenna connectors (2T2R)jk
  1 x DisplayPort
  1 x HDMI port
  1 x USB Type-C® port, s USB 3.2 Gen 2 support
  2 x USB 3.2 Gen 2 Type-A ports (red)
  5 x USB 3.2 Gen 1 ports
  4 x USB 2.0/1.1 ports
  1 x RJ-45 port
  1 x optický S/PDIF Out connector
  2 x audio jacks



  I/O Controller

  iTE® I/O Controller Chip



  H/W Monitoring

  Voltage detection
  Temperature detection
  Fan speed detection
  Water cooling flow rate detection
  Fan fail warning
  Fan speed control


• Keď je fan (pump) speed control function je podporovaný bude depend on the fan (pump) you install.



  BIOS

  1 x 256 Mbit flash
  Use of licensed AMI UEFI BIOS
  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0



  Unique Features

  Support pre GIGABYTE Control Center (GCC)

• Available applications in GCC má vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

  Support for Q-Flash
  Support for Q-Flash Plus



  Bundled Software

  Norton® Internet Security (OEM version)
  LAN bandwidth management softvér



  Operating System

  Support for Windows 11 64-bit
  Support for Windows 10 64-bit



  Form Factor

  Micro ATX Form Factor; 24.4cm x 24.4cm
