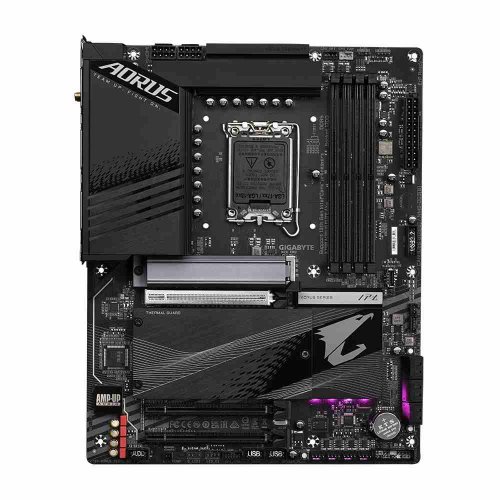

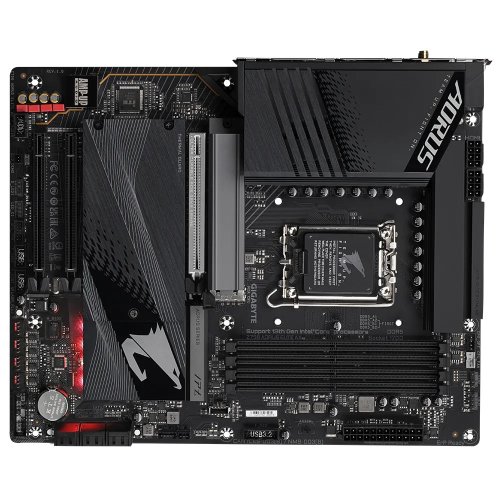

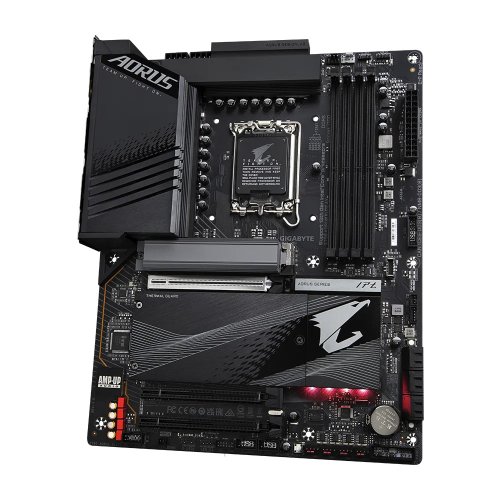

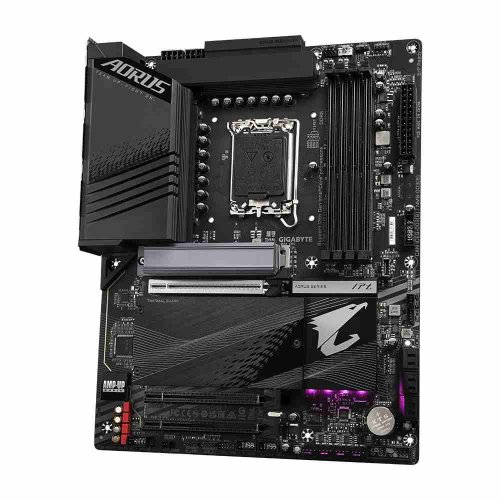

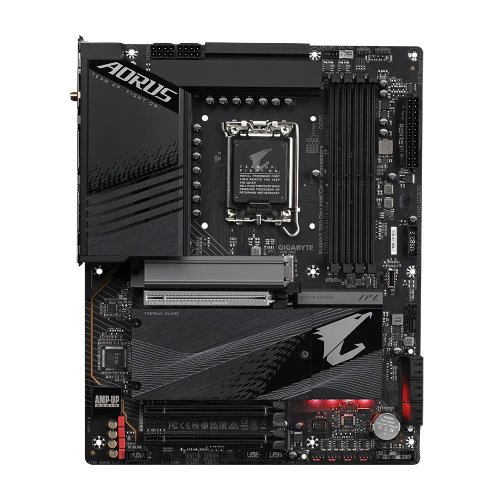

Chipset: Intel Z790 Express Chipset

Rozmerový formát: ATX Form Factor; (30.5cm x 24.4cm) Podpora pre procesory: 13. a 12. Generácia Intel Core, Pentium Gold a Celeron Processors Pätica procesora: LGA 1700

Pozícia na pamäti: 4 x DDR DIMM sockets, Dual channel memory architecture Podpora pre pamäte: DDR5 7600( OC .) /7400( OC .) /7200( OC .) /7000( OC .) /6800( OC .) /6600 ( OC .) / 6400 ( OC .) / 6200 ( OC .) / 6000 ( OC .) / 5800 ( OC .) / 5600 ( OC . ) / 5400 ( OC .) / 5200 ( OC .) / 5200 ( OC .) / 4800 / 4800 memory modules Max. veľkosť operačnej pamäte: 128 GB (32 GB single DIMM capacity) Podpora pre pamäte typu: ECC, non-ECC, XMP

Grafické výstupy: (Intel HD Graphics) *1 x HDMI 2.0 port, maximálne rozlíšenie 4096x2160@60 Hz *1 x DisplayPort 1.2, maximálne rozlíšenie 4096x2304@60

Zvuková karta: Realtek Audio CODEC *2/4/5.1/7.1-channel *Podpora S/PDIF Out

Sieťová karta: *Realtek 2.5GbE LAN čip (2.5Gbps/1Gbps/100Mbps) *Intel Wi-Fi 6E AX211 a, b, g, n, ac, ax *Bluetooth 5.3

Rozširujúce sloty: *1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) *2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)

RAID radič: RAID 0, RAID 1, RAID 5, and RAID 10

SATA: 6 x SATA 6Gb/s konektory M.2 : 4 x M.2 Socket 3 konektory

USB: * Interný: *1 USB Type-C header, s USB 3.2 Gen 2 support *1 USB 3.2 Gen 1 header *2 x USB 2.0/1.1 headers * Externý: *1 USB Type-C port, with USB 3.2 Gen 2x2 support *2 x USB 3.2 Gen 2 Type-A ports (red) *3 x USB 3.2 Gen 1 ports *4 x USB 2.0/1.1 ports

Interné porty: 1 x 24-pin ATX main power connector cooling pump header *2 x addressable LED strip headers *2 x RGB LED strip headers *4 x M.2 Socket 3 connectors *6 x SATA 6Gb/s connectors *1 x front panel header *1 x front panel audio header *1 x USB Type-C header, with USB 3.2 Gen 2 support *1 x USB 3.2 Gen 1 header *2 x USB 2.0/1.1 headers *2 x Thunderbolt doplnkové karty konektorov *1 x Trusted Platform Module header (For the GC-TPM2 .0 SPI/GC-TPM2.0 SPI 2.0 module only) *1 x reset tlačidlo *1 x Q-Flash Plus tlačidlo *1 x Clear CMOS tlačidlo *1 x reset jumper *1 x Clear CMOS jump

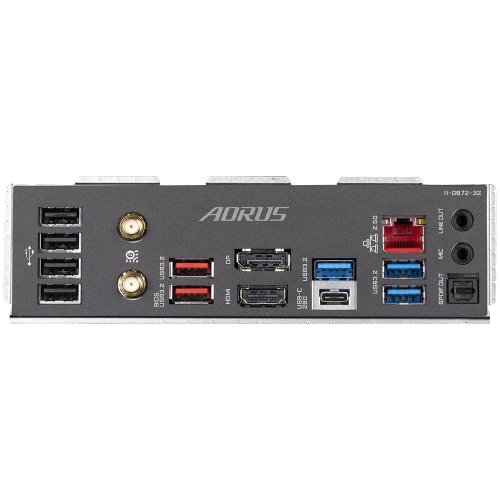

Externé porty: *1 USB Type-C port, s USB 3.2 Gen 2x2 support *2 x USB 3.2 Gen 2 Type-A ports (red) *3 x USB 3.2 Gen 1 ports *4 x USB 2.0/1.1 ports *2 x SMA antény konektory (2T2R) *1 x HDMI 2.0 port *1 x DisplayPort *1 x RJ-45 port *1 x optický S/PDIF Out connector *2 x audio jacks

BIOS: AMI UEFI BIOS, 1 x 256 Mbit flash

Stránka výrobcu: http://www.gigabyte.com/Motherboard/Z790-AORUS-ELITE-AX-rev-10#kf
