Chipset: AMD B550

Rozmerový formát: Formát ATX (305 mm x 244 mm) Podpora pre procesory: 3rd Gen AMD Ryzén™ procesory, a future AMD Ryzén™ procesory s BIOS update Pätica procesora: AM4

Pozícia na pamäti: 4x DDR4 Podpora pre pamäte: 466 / 3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE Max.veľkosť operačnej pamäte: 128 GB Podpora pre pamäte typu: DDR4 *Dual channel memory architecture *Supports non-ECC UDIMM UDIMM memory (non-ECC mode) *Supports un-buffered memory

Grafické výstupy: na základe procesora *1x HDMI port, supports a maximum resolution of 4096x2160 @ 24Hz *1x DisplayPort, supports a maximum resolution of 4096x2160 @ 60Hz

Multi GPU: *Supports 2-Way AMD CrossFire™ Technology

Zvuková karta: *Realtek® ALC892 Codec

Sieťová karta: *1x Realtek® 8111H Gigabit LAN controller

RAID radič: *Supports RAID 0, RAID 1 a RAID 10 pre SATA storage devices *Supports RAID 0 a RAID 1 pre M.2 NVMe storage devices

Rozširujúce sloty: *1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) *1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed *2x PCIe 3.0 x1 slots

SATA: *6x SATA 6Gb/s ports

M.2 : *2x M.2 slots (Key M)

USB: * zadné USB porty ( celkom 8 ) *4x USB 2.0 ports *1x USB 3.2 Gen 2 10Gbps Type-C port *1x USB 3.2 Gen 2 10Gbps port *2x USB 3.2 Gen 1 5Gbps Type-A ports * predné USB porty ( celkom 7 ) *1x USB 3.2 Gen 1 5Gbps Type-C port *2x USB 3.2 Gen 1 5Gbps ports *4x USB 2.0 ports

Interné porty: 1x 24-pin ATX main power connector 1x 8 - pin ATX 12V connector *1x USB 3.2 Gen 1 5Gbps konektor (supports additional 2 USB 3.2 Gen 1 5Gbps ports) *2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) *1x 4-pin CPU fan connector *1x 4-pin water-pump fan connect *6x 4-pin system fan connectors *1x Front panel audio connector *2x System panel connectors *1x Chassis Intrusion connector *1x 4-pin RGB LED connector *2x 3-pin RAINBOW LED connectors *1x TPM module connector *1x Clear CMOS jumper

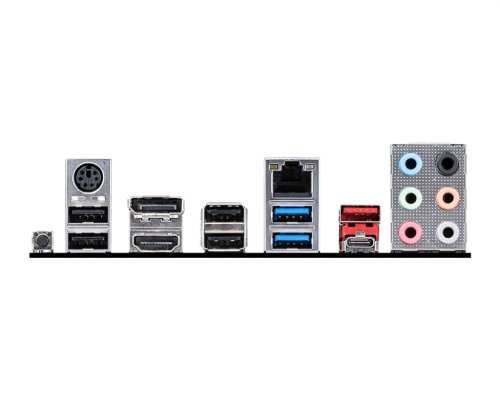

Externé porty: *PS/2 Keyboard / Mouse *DisplayPort *1x LAN *HD Audio Connectors *Flash BIOS Button *HDMI *4x USB 2.0 *2x USB 3.2 Gen 1 5Gbps Type-A *1x USB 3.2 Gen 2 10Gbps Type-A * 1x USB 3.2 Gen 2 10Gbps Type-C

Stránka výrobcu: https://www.msi.com/Motherboard/B550-A-PRO
