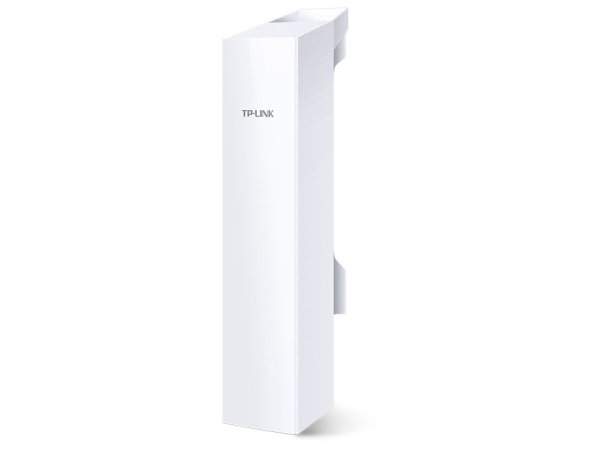

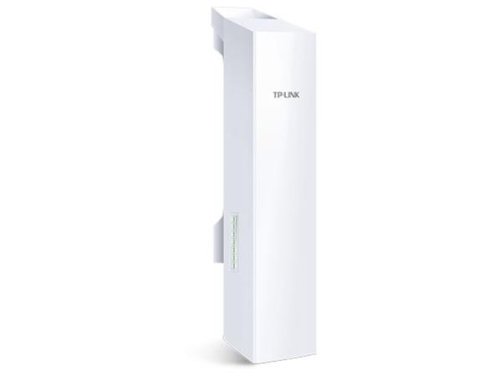

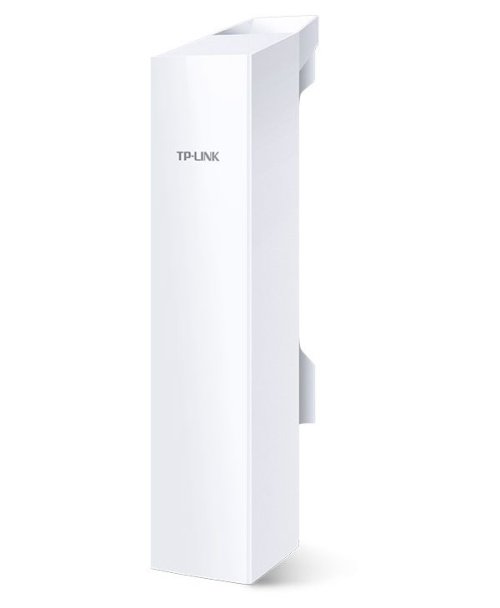

Vonkajšie CPE zariadenie 2.4GHz 300Mbit/s 12dBi
CPE220

Vstavaná 12dBi 2x2 smerová MIMO anténa s dvojitou polarizáciou
Nastaviteľný výkon vysielania od 0 do 30dBm/1000mWOptimalizácia na úrovni systému pre viac ako 13km dosah bezdrôtového prenosu
Technológia TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) zlepšuje výkon zariadenia čo sa týka priepustnosti, kapacity a latencie, ideálny pre aplikácie PTMP
Centralizovaný systém ovládania - riadenie Pharos
Prevádzkové režimy AP / Klient / AP router / AP router s funkciou klienta (WISP)
Pasívny PoE adaptér podporuje napájanie cez Ethernet až na 60 metrov a umožňuje vzdialené resetovanie zariadenia


HARDWARE FEATURES



Procesor
Qualcomm Atheros 560MHz CPU, MIPS 74Kc

Memory
64MB DDR2 RAM, 8MB Flash

Interface
1 10/100Mbps Shielded Ethernet Port (LAN0, Passive PoE in)
1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough)
1 Grounding Terminal
1 Reset Button


Power Supply
Passive Power over Ethernet cez LAN0 (+4,5pins; -7,8pins)
Voltage range: 16-27VDC


Power Consumption
10.8 Watts Max
Poznámka: When deployed using Passive PoE, power drawn from the power source will
be higher by some amount depending on length of the connecting cable.


Dimensions ( W x D x H )
11×3.1×2.1 inch (276×79×60 mm)

Antenna Type
Built-in 12dBi 2x2 Dual-polarized Directional Antenna
Beam Width: 60° (H-Plane) / 30° (E-Plane)
Poznámka: For more details, prosím refer to datasheet


Protection
15KV ESD Protection
6KV Lightning Protection


Enclosure
Outdoor ASA stabilizovaný plastický materiál
IPX5 waterproof Certification



WIRELESS FEATURES



Wireless Standards
IEEE 802.11b/g/n (with Pharos MAXtream disabled)

Proprietary Protocol
TDMA Mode (with Pharos MAXtream enabled)

Wireless Speeds
Up to 300Mbps (40MHz,Dynamic)
Up to 144.4Mbps (20MHz,Dynamic)
Up to 72.2Mbps (10MHz,Dynamic)
Up to 36.1Mbps (5MHz,Dynamic)


Frequency
2.4~2.483GHz
Poznámka: Available operating frequency majú vary depending on the limitations
of the countries or regions in which the device is used.


Transmission Power
30dBm/1000mw (Adjustable power by 1dBm)
Poznámka: Maximum transmission power may vary across different channels depending
na obmedzeniach krajín alebo regiónov v ktorých device sa používa.



SOFTVÉR FEATURES



Wireless Configurations
Pharos MAXtream TDMA Technology
802.11b/g/n Modes
Selectable Channel Width: 5/10/20/40MHz
Automatic Channel Selection
Transmission Power Control
Dynamic Frequency Selection (DFS)
WDS Enable/Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
SSID Broadcast Enable/Disable
Multi-SSID s VLAN Tagging (AP mode only)
Distance/ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced:
> Beacon Interval/RTS Threshold/Fragmentation
>Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia


Management
Discovery and Remote Management cez Pharos Control application
HTTP/HTTPS Web-based management
System Log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server


System Tools
Wireless Signal Quality Indicators:
Signal Strength/Noise/Transmit CCQ/CPU/Memory
Monitory: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
Spectrum Analyzer
Speed Test
Ping
Traceroute


System-level Optimizations
Optimized IGMP Snooping/Proxy for multicast applications
Hardvér watch dog



POE ADAPTER FEATURES



Dimensions(W x D x H)
110×57×33.5mm

Input Current
0.8A Max @ 100VAC

Input Voltage
100VA~240VAC @ 50Hz~60Hz

Output
24VDC, 1.0A Max
+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)


Efficiency
>80%

Output Voltage
24VDC(+4,5pins; -7,8pins)

Input
100-240VAC, 50/60Hz

Power Status LEDs
0~0.8A: Green
0.8A~1.0A: Red


Certifications
CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark

Interfaces
1 AC Jack with Earth Ground
1 10/100Mbps/1000Mbps Shielded Ethernet Port (Power + Data)
1 10/100Mbps/1000Mbps Shielded Ethernet Port (Data)


Button
Remote Reset Button


OTHERS



Certification
CE, FCC, RoHS, IPX5

Package Contents
Outdoor Wireless CPE
24V 1A Passive PoE Adapter
Pole Mounting Straps
AC Power Cord
Installation Guide


System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista ™ alebo Windows 10, Windows 8, Windows 7,
MAC OS, NetWare, UNIX alebo Linux.
Poznámka: We recommend you to use one of following web browsers for an improved user
experiment: Google Chrome, Safari, a Firefox. IE browsers are not recommended.


Environment
Operating Temperature: -30°C~70°C (-22°~158°)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 95% non-condensing
