• 802.11ac až 867Mb/s pri 5GHz bezdrôtovej dátovej rýchlosti
• 23dBi vysoko ziskový smerový 2 × 2 MIMO, ideálny pre aplikáciu na veľké vzdialenosti
• Vynikajúca smerovosť lúča, vylepšená latencia a potlačenie šumu

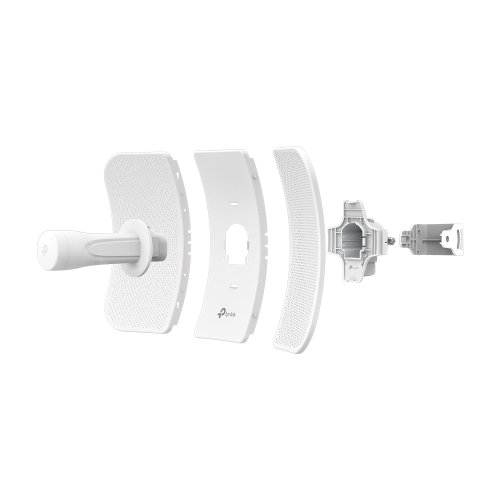

• Inovatívne diely so zámkom zaisťujú rýchlu montáž a robustné konštrukčné riešenie, ktoré udržuje CPE710 stabilné aj za silného vetra
• Bytelné krytie IP65 odolné voči poveternostným vplyvom spolu s 15kV ESD a 6kV ochranou pred bleskom zaisťuje vhodnosť do každého počasia.
• Pharos Control poskytuje správcom bezplatný centralizovaný systém správy
• Pasívna podpora PoE umožnuje flexibilné nasadenie a pohodlnú inštaláciu

HARDWARE FEATURES

Procesor
Qualcomm 750MHz CPU, MIPS 74Kc

Memory
128 MB DDR2 RAM, 16 MB Flash

Interface
1 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE)
1 Reset Button

Power Supply
Passive Power over Ethernet cez LAN (+4,5pins; -7,8pins)
Voltage range: 16-27V DC

Dimensions ( W x D x H )
366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.)

Antenna Gain
23 dBi

Antenna Beamwidth
9° (Azimuth)/7° (Elevation)

Protection
15 KV ESD Protection
6 KV Lightning Protection

Enclosure
Material: Outdoor PC stabilized plastic
Weatherproof: IP65 water and dust proof design

WIRELESS FEATURES
Wireless Standards
IEEE 802.11a/n/ac
Wireless Speeds
Up to 867 Mbps (80 MHz, Dynamic)
Up to 400 Mbps (40 MHz, Dynamic)
Up to 173.4 Mbps (20 MHz, Dynamic)

Frequency
5.15~5.85 GHz

Transmit Power
Max. 27 dBm (Adjustable power by 1dBm)

SOFTVÉR FEATURES

Network Configuration

WAN: Static/Dynamic/PPPoE
LAN: Static/Dynamic/DHCP
Forwarding: ALG/ UPnP/ Virtual Server/ Port Trigger
Security: SPI Firewall/ Ping Forbidden/ DoS Protection
Access Control
Static Routing
Bandwidth Control
IP & MAC Binding

Wireless Configurations
Selectable Channel Width: 20/40/80MHz
Auto Channel Selection
Transmit Power Control
Dynamic Frequency Selection(DFS)
WDS Enable/Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption,
SSID Broadcast Enable/Disable
Multi-SSID s VLAN Tagging (AP Mode only)
Distance/ ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced:
Beacon Interval / RTS Threshold / Fragmentation Threshold / DTIM Interval / AP Isolation / Short GI / Wi-Fi Multimedia
Long Range PtP

Management
Discovery and Remote Management cez Pharos Control application
HTTP/ HTTPS Web-based management
System log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server

System Tools
Indicators: Signal Strength/ Noise/ Transmit CCQ/ CPU/ Memory
Monitory: Throughput/ Stations/ Interfaces/ ARP/ Routes/ WAN/ DHCP
Spectrum Analyzer
Speed Test
Ping
Traceroute
Antenna Alignment

System-level Optimizations
Optimized IGMP Snooping / Proxy for multicast applications

POE ADAPTER FEATURES
Dimensions(W x D x H)
85.8×43.9×29.7 mm

Interfaces
1 AC Jack with Earth Ground
1× 10/100/1000 Mbps Shielded Ethernet Port (Power + Data)
1× 10/100/1000 Mbps Shielded Ethernet Port (Data)

Button
Remote Reset Button
Power Status LEDs
Green
Input
100-240VAC, 50/60Hz
Output
24VDC, 0.5A Max
+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)

Efficiency

84.29%
Certifications
CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark

OTHERS
Certification
CE, FCC, RoHS, IP65, IC

Package Contents
Outdoor Wireless CPE
24V 0.5A Passive PoE Adapter
Pole Mounting Kits
AC Power Cord
Installation Guide

System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista™ alebo Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX alebo Linux.
Poznámka: Máme možnosť použiť jeden z nasledujúcich webových prehliadačov pre bezproblémové používateľské skúsenosti: Google Chrome, Safari, a Firefox. IE browsers are not recommended.

Environment
Operating Temperature: -40?~70? (-40?~158?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5% ~ 95% non-condensing
