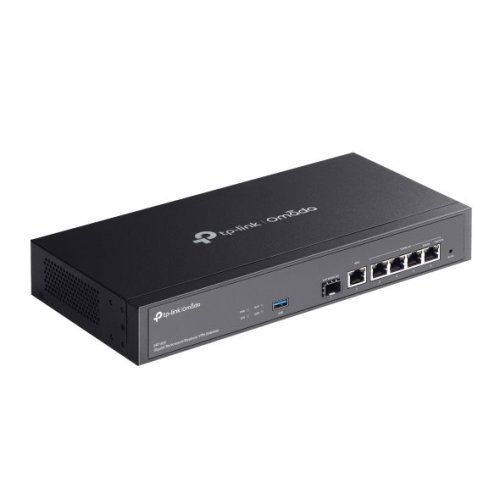

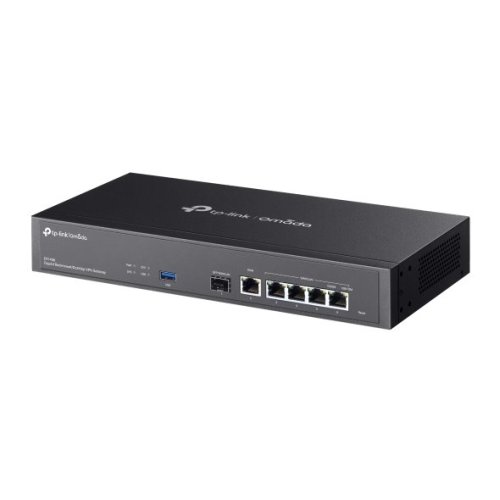

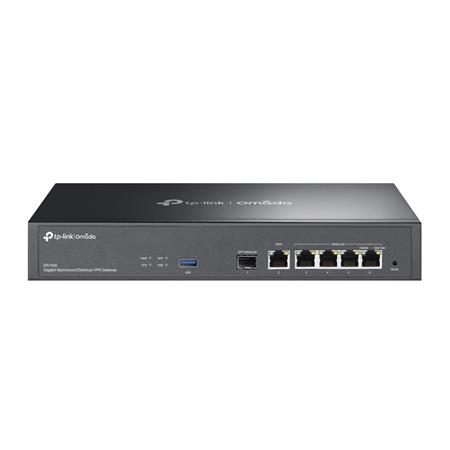

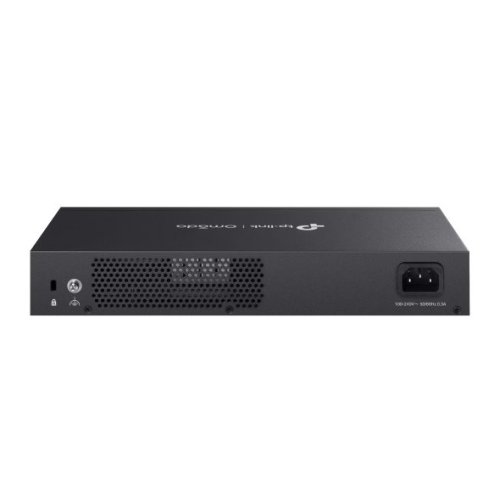

ER7406 Omada Gigabitová gateway VPN pre montáž do racku / na stôl
Funkcia *1× gigabitový SFP WAN/LAN port *5× gigabitových RJ45 portov (1× WAN, 4× WAN/LAN) *1× USB 3.0 port (podporuje USB úložisko a LTE zálohovanie s LTE donglem) *Vyvažovanie záťaže na až 5 WAN portoch zvyšuje využitie viac-liniek širokopásmového pripojenia *Vysoko zabezpečená SSL/IPSec/GRE§/WireGuard/PPTP/L2TP VPN a OpenVPN *Centralizovaná správa v cloude cez web alebo aplikáciu Omada *Ochrana proti DoS, filtrovanie IP/MAC/URL, DPI a IPS/IDS pre zvýšenú bezpečnosť *Montáž do racku/stolové prevedenie

Špecifikácia Zabezpečenie Access Control Source/Destination IP Based Access Control Filtering WEB Group Filtering URL Filtering Web Security ARP Inspection Sending GARP Packets ARP Scanning IP-MAC Binding Attack Defense (Stealth FIN/Xmas/Null) *Block Ping z WAN Hardware Standards and Protocols *IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q *TCP/IP , PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP Interface *1 Gigabit SFP WAN/LAN Port *1 Gigabit WAN Port *4 Gigabit LAN/WAN Ports *1 USB 3.0 Port (súbory USB LTE dongle a USB storage) Network Media *10BASE-T: UTP kategórie 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m) *100BASE-TX: UTP kategórie 5, 5e cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m) *1000BASE-T: UTP kategórie 5, 5e, 6 cable (Max 100 m) Fan Quantity *Fanless Button *Reset Button Power Supply *100-240VAC, 50/60Hz Flash *128 MB MB DDR4 LED *PWR, SYS, SFP, USB, WAN(1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act) Dimensions (W x D x H ) *294 × 140 × 44 mm Protection *4 kV surge protection Enclosure *Steel Mounting *Desktop *Rackmountable Max Power Consumption *7.5 W (s USB 3.0 pripojený) *4.5 W (without USB 3.0 pripojený) Výkon IPS Mbps; *UDP: 188 Mbps DPI Throughput *TCP: 933 Mbps; *UDP: 927 Mbps GRE *Unencrypted: 611.9 Mbps *Encrypted: 325.0 Mbps WireGuard VPN *341.3 Mbps Concurrent Session *150,000 New Sessions /Second *5,300 NAT (Static IP) *94 9.6 Mbps / 940.9 Mbps NAT(PPPoE) *943.6 Mbps/940.9 Mbps NAT (L2TP) *880.1 Mbps/859.0 Mbps NAT (PPTP) *855.0 Mbps/907.2 Mbps IPsec VPN Throughput *ES HA256-AES256 : 592.8 Mbps *ESP-SHA384-AES256: 592.4 Mbps *ESP-SHA512-AES256: 604.5 Mbps OpenVPN *139.1 Mbps L2TP VPN Throughput *Unencrypted: 977.4 Mbps *Unencrypted: 1064.1 Mbps *Encrypted: 206.8 Mbps SSL VPN Throughput *131.6 Mbps 66 Byte Packet forwarding rate *1,453,489 pps / 1,453,488 pps 1,518 Byte Packet forwarding rate *81,279 pps , IPTV Rozšírené funkcie Advanced Routing, Bandwidth Control, Load Balance, NAT, Session Limit VPN GRE *Yes(Only in Standalone Mode) SSL VPN *50 Tunnels IPsec VPN *100 IPSec VPN Tunnels PPTP VPN *50 Tunnels L2TP VPN *50 Tunnels OpenVPN *55 OpenV *No Authentication *Simple Password *Hotspot (Local User /Voucher*/ SMS/Radius*) *External Radius Server *External Portal Sever *LDAP Management Omada App *Yes. Potrebujete použiť Omada Hardvér Controller, Omada Cloud-Based Controller, alebo Omada Software Controller. Centralized Management *Omada Cloud-Based Controller *Omada Hardvér Controller *Omada Softvér Controller Cloud Access *Yes. Potrebujete použiť Omada Hardvér Controller, Omada Cloud-Based Controller, alebo Omada Software Controller. Service *Dynamic DNS (Dyndns, IP, Peanuthull, Comexe, DDNS Customization) Zero-Touch Provisioning *Yes. Requires use of Omada Cloud-Based Controller.
