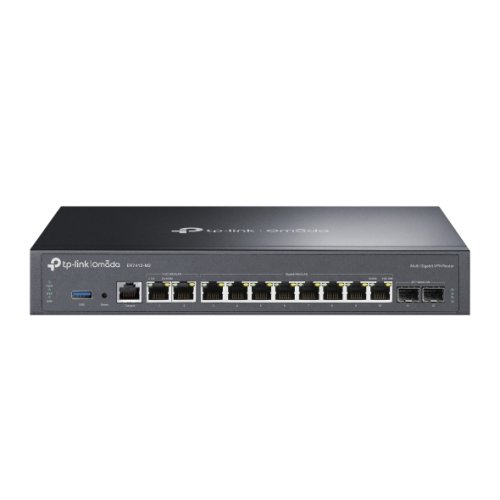

ER7412-M2
Omada Multi-Gigabit VPN Router *Štvorjadrový procesor @2.0GHz *2× 2,5G RJ45 WAN/LAN porty *10× Gigabit WAN/LAN porty (2× SFP, 8× RJ45) *1× port USB 3.0 (podporuje úložisko USB a zálohovanie LTE pomocou LTE dongle) *Až 11 WAN portov *Multi-WAN Load Balancing zvyšuje mieru využitia viaclinkového širokopásmového pripojenia *Vysoko zabezpečené SSL/IPSec/GRE/WireGuard/PPTP/L2TP VPN & OpenVPN *Centralizovaná správa cloudu cez web alebo aplikáciu *Ochrana proti DoS, filtrovanie IP/MAC/URL, DPI a IPS/IDS pre lepšie zabezpečenie.

Špecifikácia

Bezpečnosť Access Control *Source/Destination IP-Based ACL *Stateful ACL *IPv4/IPv6 ACL *National Based ACL Filtering *WEB Group Filtering§ *URL Filtering *Web Security ARP Inspection *Sending GARP Packets *ARP Scanning *IP-MAC Binding Attack Defense *TCP/UDP/ICMP Flood Defense *Block TCP Scan (Stealth FIN/Xmas/Null) *Block Ping z WAN Hardware Standards and Protocols *IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 8 IEEE802.1q *TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP Interface *1× 2.5G RJ45 WAN/LAN Port *1× 2.5G RJ45 WAN/LAN Port *2× Gigabit SFP WAN/LAN Porty *8× Gigabit RJ45 WAN/LAN Porty *1× RJ45 Console Port *1× USB 3.0 Port (Support USB storage, a LTE backup with LTE dongle) Network Media *10BASE-T: UTP kategórie 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m) *100BASE-TX: UTP kategórie 5, 5e cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m) *1000BASE-T: UTP kategórie 5, 5e, 6 cable (Max 100 m) *2500BASE-T: UTP kategórie 5e, 6 cable (Max 100 m) Button *Reset Button Power Supply *10 VAC, 50/60 Hz Flash *128 MB NAND DRAM *1 GB DDR4 Dimensions (W x D x H) *294×180×44 mm Protection *4 kV surge protection Enclosure *Steel Mounting *Desktop (With USB 3.0 connected) Základné funkcie WAN Connection Type *Static IP/Dynamic IP *PPPoE (supports MRU Configuration) *PPTP *L2TP *Mobile Broadband: 4G/3G modem pre backup cez USB port DHCP *DHCP Server *DHCPv6 PD Server (len in Standalone Mode) *DHCP Options Customization *DHCP Address Reservation *Multi-IP Interfaces *Multi-Net DHCP IPv6 *StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / Pass VLAN *802.1Q VLAN IPTV *IGMP v2/v3 Proxy, Custom Mode, Bridge Mode Pokročilé funkcie Advanced Routing *Static Routing *Policy Routing *RIP (available in Standalone Mode) -based Bandwidth Control Load Balance *Intelligent Load Balance *Application Optimized Routing *Link Backup (Timing, Failover) *Online Detection NAT *One-to-One NAT *Multi-Net NAT *Virtual Server *Port Triggering *NAT-DMZ *FTP / H.323/SIP/IPSec/PPTP ALG *UPnP Session Limit *IP-based Session Limit VPN GRE *Only v štandardnom režime SSL VPN *80 Tunnels IPsec VPN *150 IPSec VPN Tunnels *LAN-to-LAN, Client-to -LAN *Main, Aggressive Negotiation Mode *DES, 3DES, AES128, AES192, AES256 Encryption Algorithm *IPsec Failover *IKE v1/v2 *MD5, SHA1, SHA2-384 a SHA2-512 Authentication Algorithm *Dead Peer Detection (DPD) *Perfect Forward Secrecy (PFS) PPTP VPN *PPTP VPN Server *PPTP VPN Client (15) *150 Tunnels *PPTP s MPPE Encryptionom L2TP VPN *L2TP VPN Server *L2TP VPN Client (15) *150 Tunnels *L2TP over IPSec OpenVPN *OpenVPN Server *OpenVPN Client (11) *121 OpenVPN Tunnels *"Certificate + Account" Mode *Full Mode
