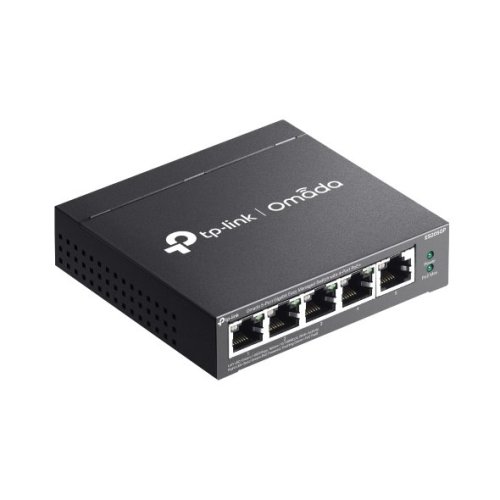

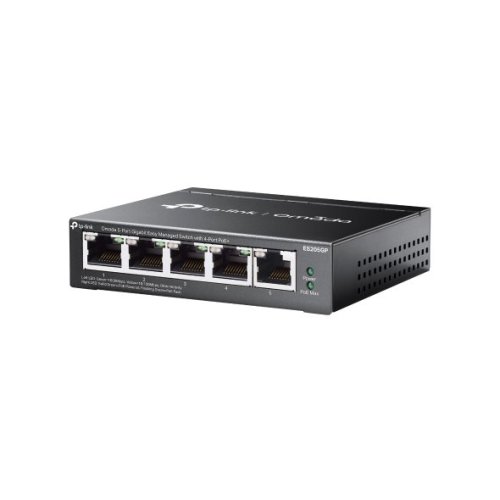

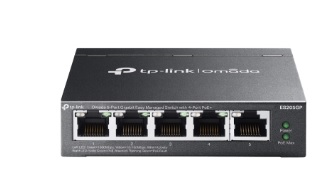

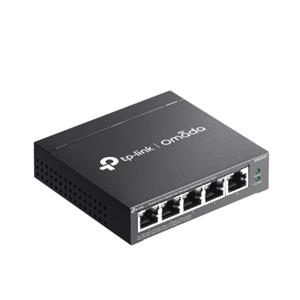

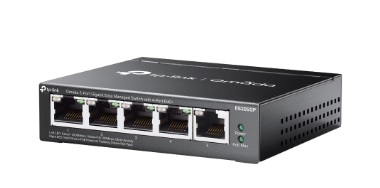

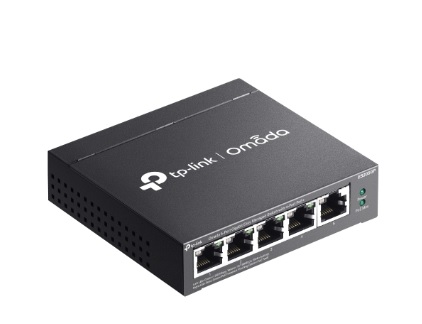

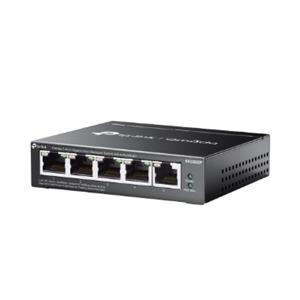

ES205GP Omada 5portový gigabitový Easy Managed Switch so 4 portami PoE+

5× 10/100/1000Mb/s RJ45 portov (4× PoE+ s podporou štandardu 802.3at/af)
Napájací rozpočet 65W, až 30W pre každý PoE port*
Jednoduché použitie: Podpora plug-and-play pre okamžité pripojenie a jednoduchú konfiguráciu ďalších funkcií
Centrálna správa cez cloud prostredníctvom webu alebo aplikácie Omada†
Až 250 m PoE**, QoS?, automatické obnovenie PoE‡ a izolácia portov pre spoľahlivú sieťovú infraštruktúru pre dohľad
Automatická prevencia slučiek, VLAN a IGMP Snooping
Bezhlučná prevádzka vďaka bezventilátorovému dizajnu

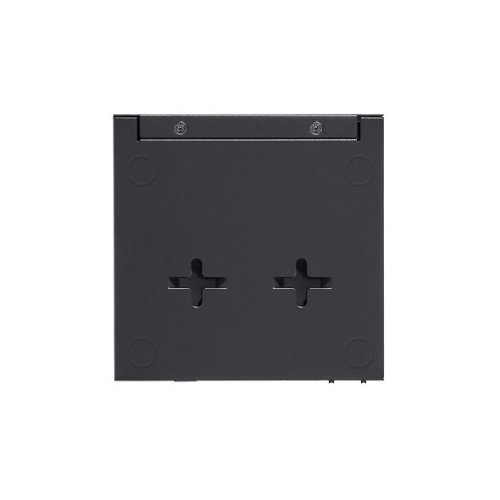

Odolné kovové puzdro a dizajn na umiestnenie na stôl alebo montáž na stenu

HARDWARE FEATURES
Interface • 5× 10/100/1000 Mbps RJ45 Ports (Ports 1-4 Support 802.3at PoE+ and 802.3af PoE)
• Auto-Negotiation/Auto MDI/MDIX
Fan Quantity Fanless
Installation • Desktop

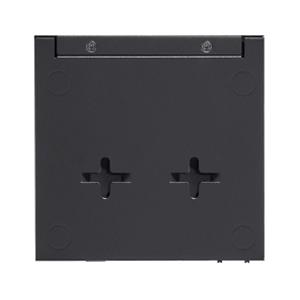

• Wall Mount
Physical Security Lock?

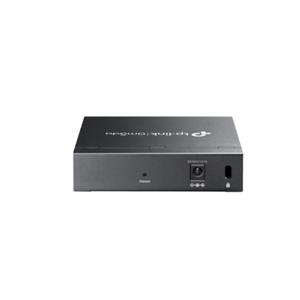

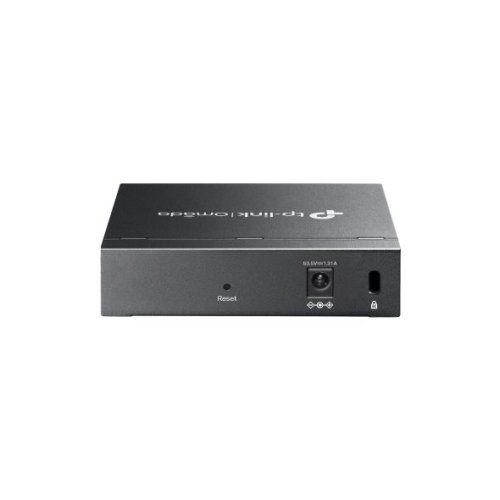

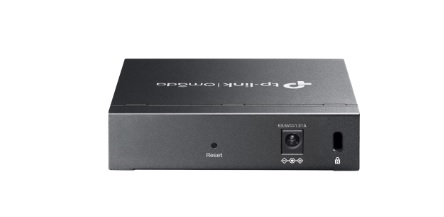

Power Supply DC Power Adapter (Output: 53.5 VDC/1.31 A)
PoE Ports (RJ45) • Štandard: 802.3af PoE a 802.3at PoE+ compliant
• PoE Ports: 4 ports
• PoE Budget: 65 W dostupný pre všetky PoE+ porty, 30W max per port
• PoE Auto Recovery‡
• Up to 250m PoE transmission distance**
Dimensions ( W x D x H ) 3.9×3.9×1.0 in (100×98×25 mm)
PERFORMANCE
Switching Capacity 10 Gbps
Packet Forwarding Rate 7.4 Mpps
MAC Address Table 8K
Packet Buffer Memory 4 Mbit
Jumbo Frame 15 KB
SOFTVÉR FEATURES
Quality of Service • Port-based/802.1p/DSCP QoS
• 8 Priority Queues
• Priority Schedule Mode

• WRR (Weighted Round Robin)
  • Queue Weight Config
  • Bandwidth Control

• Port-Based Rating Limit
  • Storm Control

• Multiple Control Modes (kbps/pps)

• Broadcast/Multicast/Unknown-Unicast Control?
  L2 Features • Static Link Aggregation
  • Loop Prevention / Loopback Detection
  • Flow Control

• 802.3x Flow Control
  • Mirroring

• Port Mirroring

• One-to-One

• Many-to-One

• Ingress/Egress/Both
  • Port Statistics

• Port Mirror Status

• Traffic Statistics
  • 802.1ab LLDP
  L2 Multicast • IGMP Snooping

• IGMP v1/v2/v3 Snooping

• Fast Leave
  VLAN • MTU VLAN
  • Port-Based VLAN
  • 802.1Q Tag VLAN

• Max 32 VLAN Groups

• 4K VID
  Transmission Method Store-And-Forward
  MANAGEMENT
  Omada App Yes. Requires use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
  Centralized Management • Omada Cloud-Based Controller
  • Omada Hardware Controller
  • Omada Software Controller
  Cloud Access Yes. Requires use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
  Zero-Touch Provisioning Yes.
  Management Features • Web-based GUI
  • DHCP Client
  • Cable Diagnostics
  • Automatic Device Discovery†
  • Batch Configuration†
  • Batch Firmware Upgrading†
  • Unified Configuration†
  OTHERS
  Certification FCC, CE, RoHS

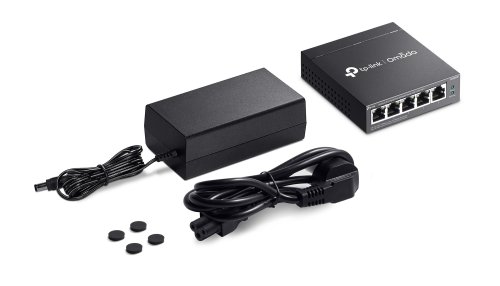

  Package Contents • ES205GP
  • Power Adapter
  • Installation Guide
  • Rubber Feet
  Environment • Operating Temperature: 0?~40? (32?~104?)
  • Storage Temperature: -40?~70? (-40?~158?)
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5% ~ 90% non-condensing
