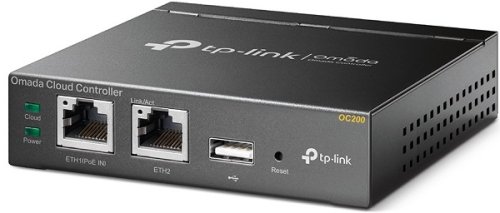

OC200

Hardwarový kontrolér Omada

Centralizovaná správa až 100 prístupových bodov Omada, 20 switchov JetStream a 10 routerov SafeStream
Pre podnikové siete do 1 000 klientov
Bezplatný cloudový prístup umožňuje vykonávať správu kedykoľvek a odkiaľkoľvek
Napájanie cez dátové rozvody PoE (802.3af/802.3at) alebo Micro USB (DC 5V/min. 1A) pre jednoduchú inštaláciu
Špičkové prevedenie s výkonným chipsetom, odolným kovovým krytom a USB portom pre automatické zálohovanie
Mobilná aplikácia Omada pre praktické ovládanie
Bezpečná sieť pre hostí s niekoľkými možnosťami prihlasovania (SMS login, Voucher)


HARDWARE FEATURES
Interface 10/100Mbps Ethernet Port 2
USB 2.0 Port 1
Micro USB Port*1
Power Supply 802.3af/at PoE alebo Micro USB (DC 5V/Minimum 1A)
Dimensions 3.9×3.9×1.0in. (100×98×25mm)
FEATURES
Wireless Fuction L3 Management
Multi-SSID
Load Balance
Band Steering
Airtime Fariness
Beamforming
Rate Limit
Wireless Schedule
QoS
Wireless Security Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
AP Management Automatic Discovery
Unified Configuration
Reboot Schedule
Batch Firmware Upgrade
LED ON/OFF
Management Scale - up to 50 AP´s
Authentication Captive Portal
MANAGEMENT
Omada App Yes
Centralized Management • Up to 100 Omada prístupové body, 20 JetStream switches, and 10 Omada routers
• Up to 1,000 Clients

Poznámka: Please refer to na www.tp-link.com/en/business-networking/all-omada/ na find all the device models supported by OC200
Cloud Access Yes
L3 Management Yes
Multi-site Management Yes
Management Features • Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration
OTHERS
Certification CE, FCC, RoHS
Package Contents Omada Cloud Controller
OC200
Quick Installation Guide
Ethernet Cable
System Requirements Microsoft® Windows® 10, 8, 7, Vista™, XP alebo MAC® OS, NetWare®, UNIX® alebo Linux
Environment Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
