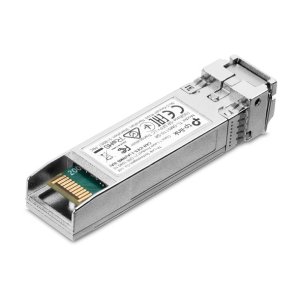

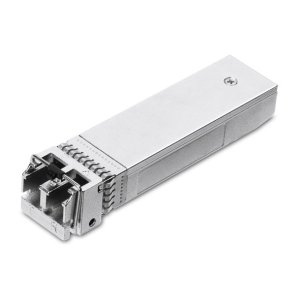

SM5110-SR
Omada 10GBase-SR SFP+ LC transceiver
10G SFP+ transceiver pre viacvidové optické vlákna (multi-mode, MM)
Duplexný LC konektor
Pripojiteľný počas prevádzky, umožňujúci maximálnu flexibilitu
Podporuje funkciu digitálnej diagnostiky (DDM)
Kompatibilný so štandardom 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA)
Kompatibilný so switchom disponujúcimi portami 10G SFP+, napr. SG3428XPP-M2, SX3206HPP, SX3008F, SX3016F a ďalšími.

PACKAGE CONTENTS
Package Contents • SM5110-SR
• Installation Guide
HARDWARE FEATURES
DDM Yes
SFP-MSA Yes
Hot Swappable Yes
MEDIA CONVERTER & MODULE
Dimensions (W D H) 2.4 0.6 0.5 in (61.3 14.5 12.2 mm)
TRANSCEIVER
Štandardy a protokoly IEEE 802.3ae, TCP/IP, SFF-8472
Wave Length 850nm
Power Supply 3.3V
Fiber Type 50/125um alebo 62.5/125um Multi-mode
Max. Cable Length 300m (OM3)
Data Rate 10Gbps
Port Type LC/UPC
Safety & Emission FCC, CE
Environment • Operating Temperature: 0–70 € (32–158 €)
• Storage Temperature: -40–80 € (-40–176 €)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5-90% RH non-condensing
