Vonkajší CPE 5 GHz AC 867 Mb/s 23 dBi
802.11ac pre bezdrôtové prenosové rýchlosti v pásme 5 GHz až 867 Mb/s
23 dBi vysoko ziskové smerové antény 2×2 MIMO, ideálne pre aplikáciu na veľké vzdialenosti
Vynikajúca smerovosť paprsku, vylepšená latencia a potlačenie šumu

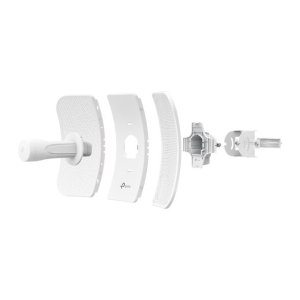

Inovatívne diely so zámkom zaisťujú rýchlu montáž a robustné konštrukčné riešenie, ktoré udržuje CPE710 stabilné aj za silného vetra
Krytie IP65 odolné voči poveternostným vplyvom spolu s 15kV ESD a 6kV ochranou pred bleskom zaisťuje vhodnosť do každého počasia
Pharos Control poskytuje správcom bezplatný centralizovaný systém správy
Podpora pasívneho PoE umožňuje flexibilné nasadenie a pohodlnú inštaláciu

HARDWARE FEATURES
Processor Qualcomm 750MHz CPU, MIPS 74Kc
Memory 128 MB DDR2 RAM, 16 MB Flash
Interface 1 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE)
1 Reset Button
Power Supply Passive Power over Ethernet cez LAN (+4,5pins; -7,8pins)
Voltage range: 16-27V DC
Dimensions ( W x D x H ) 366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.)
Antenna Gain 23 dBi
Antenna Beamwidth 9° (Azimuth)/7° (Elevation)
Protection 15 KV ESD Protection
6 KV Lightning Protection
Enclosure Material: Outdoor PC stabilized plastic
Weatherproof: IP65 water and dust proof design
WIRELESS FEATURES
Wireless Standards IEEE 802.11a/n/ac
Wireless Speeds Up to 867 Mbps (80 MHz, Dynamic)
Up to 400 Mbps (40 MHz, Dynamic)
Up to 173.4 Mbps (20 MHz, Dynamic)
Frequency 5.15 – 5.85 GHz
Transmit Power Max. 27 dBm (Adjustable power by 1dBm)
SOFTVÉR FEATURES
Network Configuration WAN: Static/Dynamic/PPPoE
LAN: Static/Dynamic/DHCP
Forwarding: ALG/ UPnP/ Virtual Server/ Port Trigger
Security: SPI Firewall/ Ping Forbidden/ DoS Protection
Access Control
Static Routing
Bandwidth Control
IP & MAC Binding
Wireless Configurations Selectable Channel Width: 20/40/80MHz
Auto Channel Selection
Transmit Power Control
Dynamic Frequency Selection(DFS)
WDS Enable/Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption,
SSID Broadcast Enable/Disable
Multi-SSID s VLAN Tagging (AP Mode only)
Distance/ ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced:
Beacon Interval / RTS Threshold / Fragmentation Threshold / DTIM Interval / AP Isolation / Short GI / Wi-Fi Multimedia
Long Range PtP
Management Discovery and Remote Management cez Pharos Control application
HTTP/ HTTPS Web-based management
System log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server
System Tools Indicatory:Signal Strength/ Noise/ Transmit CCQ/ CPU/ Memory
Monitory: Throughput/ Stations/ Interfaces/ ARP/ Routes/ WAN/ DHCP
Spectrum Analyzer
Speed Test
Ping
Traceroute
Antenna Alignment
System-level Optimization Optimized IGMP Snooping / Proxy for multicast applications
POE ADAPTER FEATURES
Dimensions (W x D x H) 85.8×43.9×29.7 mm
Interfaces 1 AC Jack with Earth Ground
1× 10/100/1000 Mbps Shielded Ethernet Port (Power + Data)
1× 10/100/1000 Mbps Shielded Ethernet Port (Data)
Button Remote Reset Button
Power Status LED Green
Input 100-240VAC, 50/60Hz
Output 24VDC, 0.5A Max
+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
Efficiency >84.29%
Certifications CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
OTHERS
Certification CE, FCC, RoHS, IP65, IC
Package Contents Outdoor Wireless CPE
24V 0.5A Passive PoE Adapter
Pole Mounting Kits
AC Power Cord
Installation Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ alebo Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX alebo Linux.
Poznámka: Máme možnosť použiť jeden z nasledujúcich webových prehliadačov pre bezproblémové používateľské skúsenosti: Google Chrome, Safari, a Firefox. IE browsers are not recommended.
Environment Operating Temperature: -40?~70? (-40?~158?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 95% non-condensing
