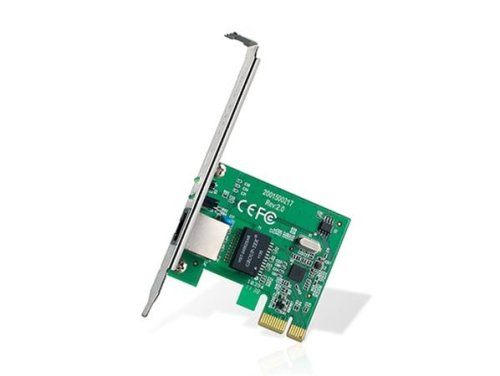

Gigabitový sieťový adaptér PCI Express
TG-3468

Adaptér 10/100/1000 Mbit/s PCIe
32-bitové rozhranie PCIe, šetriace miesto v šasi
Technológia Wake-on-LAN umožňujúca riadenie cez miestnu sieť LAN.


HARDWARE FEATURES



Štandards and Protocols
IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p, CSMA/CD, TCP/IP

Interface
32-bit PCI Express
1 10/100/1000Mbps RJ45 port

Network Media
10BASE-T: UTP kategórie 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
100BASE-TX: UTP kategórie 5, 5e cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
1000Base-T: UTP kategórie 5, 5e cable (maximum 100m)

Data Rates
10/100/1000Mbps pre Half-Duplex mode
20/200/2000Mbps pre Full-Duplex mode

LED Indicator
1000Mbps Link/Act, 100Mbps Link/Act, 10Mbps Link/Act

Flow Control
IEEE 802.3x Flow Control (Full-Duplex)


OTHERS



Certification
CE, FCC, RoHS

Package Contents
Gigabit PCI Express Network Adapter TG-3468
Resource CD
Quick Installation Guide

System Requirements
Windows 7 (32/64 bits), Windows Vista (32/64 bits), Windows XP (32/64 bits)

Environment
Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
