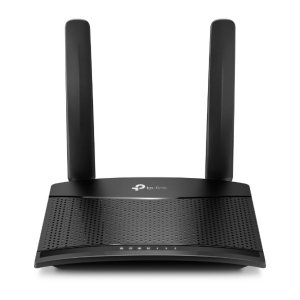

Bezdrôtový router N 4G LTE s rýchlosťou 300Mb/s
Špicková 4G siet - zdieľajte prístup k internetu až s 32 zariadeniami Wi-Fi a užívajte si rýchlosti sťahovania až 150 Mb/s

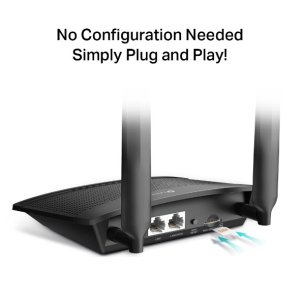

Pripojte SIM kartu a hrajte - nie je nutná žiadna konfigurácia, kompatibilita SIM kariet vo viac ako 100 krajinách je zaistená rokmi testu v teréne
Dve oddeliteľné pokročilé antény LTE - vďaka dvom externým anténam LTE si užite stabilné a efektívne pripojenie ku každému zariadeniu
Režim routera Wi-Fi - zapojte ethernetový kábel do portu LAN/WAN pre flexibilný prístup ako možnosť zálohovania, pokiaľ nie je možné získať pripojenie ku 4G

HARDWARE FEATURES

Interface
1 10/100 Mbps LAN Port, 1 10/100 Mbps LAN/WAN Port,
1 Micro SIM Card Slot

Button
WPS/Reset Button
External Power Supply(EÚ)
9V/0.85A

Dimensions ( W x D x H )
6.06×4.49×1.42 in ( 154×114×36 mm)

Antenna
2 Detachable External 4G LTE Antennas

WIRELESS FEATURES
Wireless Standards
IEEE 802.11b/g/n

Frequency
2.4 GHz
Signal Rate
300 Mbps

Receptión Sensitivity
11g 54M: -74 dBm
11n HT20: -71 dBm
11n HT40: -68 dBm

Transmit Power
< 20 dBm (2.4 GHz)
Wireless Functions
Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless

Statistics
WAN Failover
Yes

Wireless Security
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions

Network Type
4G: FDD-LTE: B1/B3/B5/B7/B8/B20 (2100/1800/850/2600/900/800 MHz)
TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)
3G: HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)

SOFTVÉR FEATURES
Security
IPv4 SPI Firewall, IP a MAC Address Binding
Operating Modes
3G/4G Router, Wireless Router
WAN Type
Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)

Management
Local Management, Remote Management
DHCP
Server, DHCP Client List, Address Reservation
Port Forwarding
ALG, Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS
DynDns, NO-IP
Protocols
IPv4, IPv6
Guest Network
2.4 GHz Guest Network

Administration
Upgrade Firmware, Factory Default, System Log, Diagnostic Tools

OTHERS

Certification
CE, RoHS
Package Contents
300 Mbps Wireless N 4G LTE TL-MR100
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide

Requirements
Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,
NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
Java-enabled browser
Micro SIM Card

Environment
Operating Temperature: 0?~40? (32? ~104?)
Storage Temperature: -40?~70? (-40? ~158?)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
