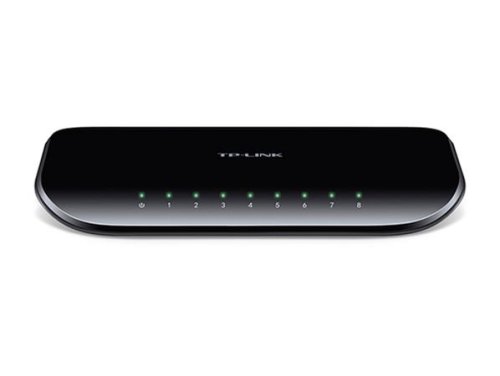

8portový gigabitový stolný switch
TL-SG1008D

8 gigabitových portov RJ45 s podporou automatického vyjednávania a Auto MDI/MDIX
Ekologická technológia Ethernet prinášajúca úsporu energie až 80 %
Plastový obal, stolné alebo nástenné prevedenie
Zapojenie typu Plug and Play bez nutnosti konfigurácie


HARDWARE FEATURES



Štandards and Protocols
IEEE 802.3i/802.3u/ 802.3ab/802.3x

Interface
8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX

Fan Quantity
Fanless

Power Consumption
Maximum: 4.63W (220V/50Hz)

External Power Supply
External Power Adapter (Output: 5VDC / 0.6A)

Jumbo Frame
15 KB

Switching Capacity
16 Gbps

Dimensions ( W x D x H )
7.1 * 3.5 * 1.0 in. (180 * 90 * 25.5 mm)


SOFTVÉR FEATURES



Transfer Method
Store and Forward

MAC Address Table
4K

Advanced Functions
Green Technology, saving power up to 80%
802.3X Flow Control, Back Pressure


OTHERS



Certification
FCC, CE, RoHs

Package Contents
8-Port Gigabit Desktop Switch TL-SG1008D
Power Adapter
Installation Guide

System Requirements


Environment
Operating Temperature: 0?~40? (32?~104?); Storage Temperature: -40?~70? (-40?~158?); Operating Humidity: 10% ~ 90% non-condensing; Storage Humidity: 5% ~ 90% non-condensing
