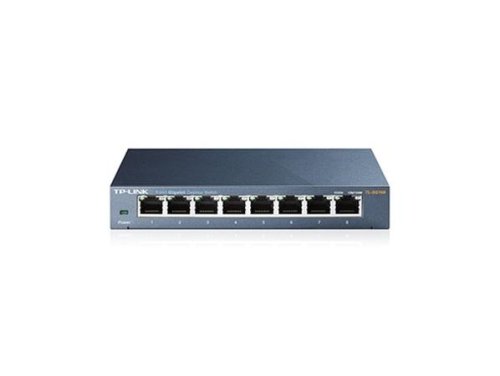

8portový stolný switch 10/100/1000 Mbit/s
TL-SG108

8 portov 10/100/1000 Mbit/s RJ45s automatickým vyjednávaním podporujúci Auto MDI/MDIX
Riadenie toku IEEE 802.3x zaisťuje spoľahlivý prenos dát
Kovový kryt, stolné alebo nástenné prevedenie
Podpora funkcie QoS (IEEE 802.1p)
Zapojenie typu Plug and Play bez nutnosti konfigurácie


HARDWARE FEATURES



Štandards and Protocols
IEEE 802.3 / 802.3u / 802.3ab / 802.3x / 802.1p


Interface
8 10/100/1000Mbps Porty, Auto-Negotiation, Auto-MDI/MDIX

Fan Quantity
Fanless

Power Consumption
Maximum: 3.97 (220V/50Hz)

External Power Supply
External Power Adapter (Output: 9VDC / 0.6A)

Buffer Size
1.5Mb

LED Indicator
System Power
Link, Speed and activity indicators per port budova do každého RJ-45 port

Dimensions ( W x D x H )
6.2 x 4.0 x 1.0 in. (158 x 101 x 25 mm)


PERFORMANCE



Packet Forwarding Rate
11.9Mpps

MAC Address Table
4K

Packet Buffer Memory
1.5Mb

Jumbo Frame
15KB


SOFTVÉR FEATURES



Advanced Features
Green Technology,saving power up to 82%
802.3X Flow Control
802.1p/DSCP QoS1
IGMP Snooping1

Transfer Method
Store and Forward


OTHERS



Certification
CE, FCC, RoHS

Package Contents
8-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide

Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90%, non-condensing
Storage Humidity: 5% ~ 90% non-condensing
