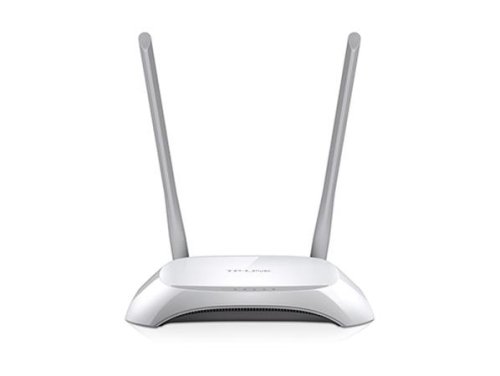

Bezdrôtový N router 300Mbit/s
TL-WR840N

Rýchlosť bezdrôtového pripojenia 300 Mbit/s je ideálna pre aplikácie citlivé na prerušenie a prácu všeobecne
Jednoduché zabezpečenie bezdrôtovej siete šifrovaním stlačením tlačidla WPS
Funkcia riadenia šírky pásma na základe IP adresy umožňuje správcom prideliť určitú šírku pásma každému počítaču
Funkcia WDS umožňuje bezproblémové premostenie v prípade rozširovania bezdrôtovej siete


HARDWARE FEATURES



Interface
4 10/100Mbps LAN PORTS
1 10/100Mbps WAN PORT

Button
WPS/RESET Button

Antenna
2 Antennas

External Power Supply
9VDC / 0.6A

Wireless Standards
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Dimensions ( W x D x H )
7.2 x 5.0 x 1.4in. (182 x 128 x 35 mm)


WIRELESS FEATURES



Frequency
2.4-2.4835GHz

Signal Rate
11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)

Receptión Sensitivity
270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER

Transmit Power
CE:
<20dBm
FCC:
<30dBm

Wireless Functions
Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics

Wireless Security
64/128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK


SOFTVÉR FEATURES



Quality of Service
WMM, Bandwidth Control

WAN Type
Dynamic IP/Static IP/PPPoE/
PPTP/L2TP

Management
Access Control
Local Management
Remote Management

DHCP
Server, Client, DHCP Client List,
Address Reservation

Port Forwarding
Virtual Server,Port Triggering, UPnP, DMZ

Dynamic DNS
DynDns, Comexe, NO-IP

VPN Pass-Through
PPTP, L2TP, IPSec (ESP Head)

Access Control
Parental Control, Local Management Control, Host List, Access Schedule, Rule Management

Firewall Security
DoS, SPI Firewall
IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding

Protocols
Support IPv4 a IPv6

Guest Network
2.4GHz Guest Network x1


OTHERS



Certification
CE, RoHS

Package Contents
Wireless N Router TL-WR840N
Power supply unit
Resource CD
Ethernet Cable
Quick Installation Guide

System Requirements
Windows 2000/XP/Vista™, Windows 7, Windows 8, Windows 8.1, Windows 10 alebo Mac OS alebo Linux-based operating system

Environment
Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
