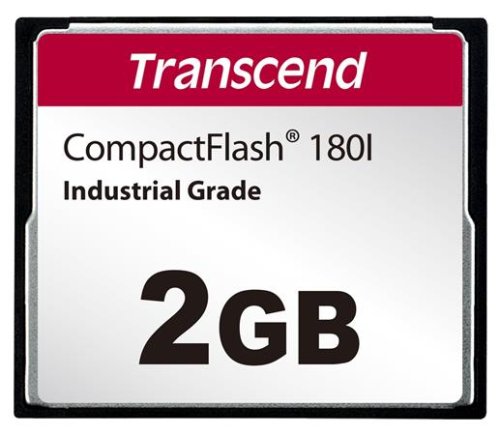

Transcend 2GB INDUSTRIAL TEMP CF180 CF CARD, (MLC) pamäťová karta (SLC mode), 85MB/s R, 70MB/s W

Transcend's SLC Mode technology je cost-effective solution that offers performance close to that of SLC NAND flash at more affordable price. Boasting a vysokorýchlostné dátové transferové rate, Transcend's SLC Mode CF180I CompactFlash karty sú perfektné pre embeddedové systémy, medicínske nástroje, cestné surveillance systémy, a iné priemyselné aplikácie majú vysokú výkonnosť a schopnosti demands. Thanks their use of Static Data Refresh technology, CF180I CF karty feature error correction capability, maintain data integrity, and have an extended lifespan. With wide temperature (-40°C ~ 85°C) schopnosti, CF180I kariet karosérie podporujú funkčnosť, rozšírenú enduranciu a optimálnu reliabilitu v mission-critical applications.

Technologies:

• SLC Mode

• Wide Temperature

• Garbage Collection

• Wear Leveling

• Bad Block Management

• Power Loss Protection (PLP)

• Early Move

  Firmware Features:

• Based on Ultra DMA Mode 5

• True IDE Mode je podporovaný: UDMA0-5 (default), MDMA0-4, PIO0-6

• True IDE Mode: Fixed Disk (Standard)

• Operačné modes supported: PC Card Memory mode, PC Card IO mode, and True IDE mode

• Built-in ECC (Error Correction Code) funkčnosti

• Static Data Refresh

• Erase Count Monitoring

• Supports SMART . funkcia na conduct health monitoring, analysis, and reporting for storage devices

• Wear-Leveling

• Security Command

  Hardware Features:

• Compliant with RoHS štandards

• Compliant with CompactFlash specification 6.0

• High-quality MLC NAND flash a SLC mode (ako nazývané SuperMLC) pre exceptional endurance and reliability

• Durability: 10,000 insertion/removal cycles

• Power Loss Protection (PLP) na prevent dáta loss in the event of sudden power outage

• Prepustená operačná reliability v rozsahu nízkych hodnôt (od -40 °C do 85 °C)

  Specifications:
  Dimensions: 42.8 mm x 36.4 mm x 3.3 mm
  Pin Count: 50 pin
  Form Factor: Compact flash card
  Flash Type: MLC NAND flash (SLC mode)
  Capacity: 2 GB
  Operating Voltage: 3.3V±5%, 5V±10%
  WideTemp.: -40°C ~ 85°C
  Storage Temperature: -40°C ~ 85°C
  Humidity: 0% ~ 95%
  Shock: 1500 G, 0.5 ms, 3 axis
  Vibration (Operating): 20 G (peak-to-peak), 20 Hz ~ 2,000 Hz (frequency)
  Power Consumption (Max.): 0.6 watt(s)
  Performance:

• Read Speed (Max.): až 85 MB/s

• Write Speed (Max.): až 70 MB/s
  Mean Time Between Failures (MTBF): 3,000,000 hour(s)
  Terabytes Written (TBW): až 210 TBW

  Poznámka
  Speed may vary due to hosť hardvér, softvér, usage, and storage capacity.
  Terabytes Written (TBW) vyjadruje odolnosť pod vysokou capacitou.

  Certificate : CE/FCC/UKCA
  Warranty: Three-year Limited Warranty

  Vďaka komplexnosti a rozmanitosti priemyselných aplikácií, Transcend cannot guarantee 100% kompatibility s všetkými platformami a pod všetkými scenarios. Pre špeciálne aplikácie a environmenty, to je strongly suggested that you contact Transcend beforehand for clarification.
