nástupca DS9208

presentation scanner, retail, 2D, imager (štandard range), 0-27.9cm reading distance, multi-interface (RS-232, KBW, USB, RS-485), protection class: IP52, incl.: cable (USB, cable type: straight, cable length 2 m), colour:

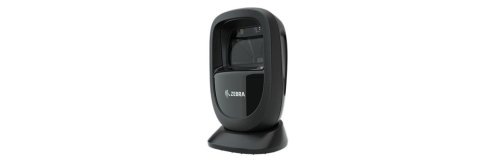

Rad Zebra DS9300 sa skladá z obzvlášť priestorovo úsporných snímacích imagerov. Vďaka svojmu kompaktnému tvaru a 45° káblovému konektoru sa zmestí takmer kdekoľvek a vyzerá dobre – ideálny pre oblasť POS v pohostinstve a maloobchode, rovnako ako pre módne butiky alebo hotelierstvo.
Rad DS9300 zachytáva 1D a 2D čiarové kódy, najmä malé kódy s vysokou hustotou, digitálne čiarové kódy z monitorov, ako aj OCR, DotCodes a voliteľné Digimarcs v takmer akomkoľvek stave. Zvláštnou výhodou je voliteľná deaktivácia štítkov proti krádeži EAS (len modely EAS) – stačí len naskenovať štítok. Medzi výhody patrí megapixelový snímač s vysokým rozlíšením, mikroprocesor o 800 MHz s exkluzívnou technológiou PRZM spoločnosti Zebra, jasné potvrdenie dobrého skenovania, ako aj rozhranie USB, RS-232, klávesnicový klin a rozhranie RS-485 (podľa zvoleného modelu). Snímače sú tiež robustné: certifikácia IP52 a odolné proti nárazu z výšky až 1,5 m. Navyše je rada Zebra DS9300 spätne kompatibilná s káblami a napájacími zdrojmi DS9208 a je podporovaná ponukou služieb Zebra OneCare Select, OneCare Essential a OneCare Essential.
Physical Characteristics
Dimensions 5.7 in. H x 3.4 in. W x 3.3 in. D 14.5 cm. H x 8.6 cm. W x 8.3 cm. D Weight 11.2 oz. / 318.0 g Input Voltage Range 4.5 to 5.5 VDC hosť powered; 4.5 to 5.5 VDC externý power supply Operating Current na Nominal Voltage (5.0V) Presentation mode: 335mA Trigger mode: 350mA Standby Current (Idle) v Nominal Voltage (5.0V) Presentation mode: 135mA Trigger mode: Supported Host Interfaces USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485
Keyboard Support Supports over 90 international keyboards Electronic Article Surveillance Compatible with Checkpoint EAS deactivation system
User Indicators Good decode LEDs, rear view LEDs, beeper (Adjustable tone and volume)
Performance Characteristics
Swipe Speed (Presentation) Up to 120 in./305 cm. per second for 13 míľ UPC v optimálnom režime Light Source Aiming pattern: circular 617 nm amber LED
Illumination 660 nm Hyper Red LED Imager Field of View 52° H x 33° V nominal
Image Sensor 1280 x 800 pixlov
Minimum Print Contrast
15%
Skew Tolerancia +/-60°
Pitch Tolerancia +/-60°
Roll Tolerancia 360°

Imaging Characteristics
Graphics Format Support
Images can be exported ako bitmap, JPEG or TIFF
Image Quality 109 PPI on a 4.1 in. x 5.8 in./A6 sized document
User Environment Operating Temperature 32.0 ° F to 122.0 ° F / 0.0 ° C to 50.0 ° C Storage Temperature -40.0 ° F to 158.0 ° F / -40.0 ° C to 70.0 ° C Humidity 5% to 95% RH, non-conden
Drop Špecification Designed to withstand multiple drops at 5.0 ft. / 1.5 m to betonové Tumble Špecification Navrhnuté s 1,000 tumbles in 1.5 ft. /0.5 m tumbler
Environmental Sealing IP52
Electrostatic Discharge (ESD)
ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV indirect
Ambient Light Immunity
0 to 10,000 foot-candles/0 to 107,700 Lux
Regulatory Environmental
EN 50581:2012 RoHS 2011/65/EÚ (2015/863) - EN 50581:2012, IEC 63000 REACH 1907/2006
Electrical Safety IEC 62368-1 2nd ed. EN 62368-1:2014/AC:2015 UL/IEC 60950-1, 2nd ed. CAN/CSA C22.2 No.60950-1 , 2nd ed. LED Safety IEC 62471:2006 ( Ed.1.0) EN 62471:2008 (LED) EMI/RFI FCC 47 CFR Part 15B, ICES-003, EN55032, EN55024, EN55035, VCCI, a SABS
Accessories
Multi-mount bracket, locking-mount bracket

Symbol Decode Capability
1D Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma) 2D PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes, SecurPharm, DotCode, Dotted DataMatrix OCR OCR-A, OCR-B, MICR, US meny to Product Reference Guide for complete list of symbologies. Minimum Element Resolution Code 39: 3 míľ; Code 128: 3 míľ; Dáta Matrix: 5 míľ; QR Code: 5 míľ
Decode Ranges (Typical)*
Symbology/Resolution Near/Far Code 39: 3 míľ 0 in./0 cm - 2.5 in./6.35 cm Code 39: 5 míľ 0 in./0 cm - 5.0 in./12.7 cm Code 39: 20 míľ 0 in. /0 cm — 11.0 in./27.9 cm Code 128: 3 míľ 0 in./0 cm — 2.0 in./5.1 cm Code 128: 5 míľ 0 in./0 cm — 4.0 in./10.2 cm PDF 417: 6.7 míľ 0 in./0 cm — 4.0 in./10.2 cm UPC: 13 míľ (100%) 0 in./0 cm — 8.8 in./22.4 cm Dáta Matrix: 10 míľ 0 in./0 cm — 4.5 in. /11.4 cm QR: 20 míľ 0 in./0 cm — 7.5 in./19.1 cm * Printing resolution, contrast, barcode width and ambient light dependent.
Warranty
Subject na termíny Zebra's hardvér warranty statement, DS9300 Series je warranted proti defects v pracovnej manipulácii a materiálov pre obdobie 3 (tri) rokov od dátumu lode. Complete Zebra hardware product warranty statement: www.zebra.com/warranty Recommended Services Zebra OneCare Select; Zebra OneCare Essential
