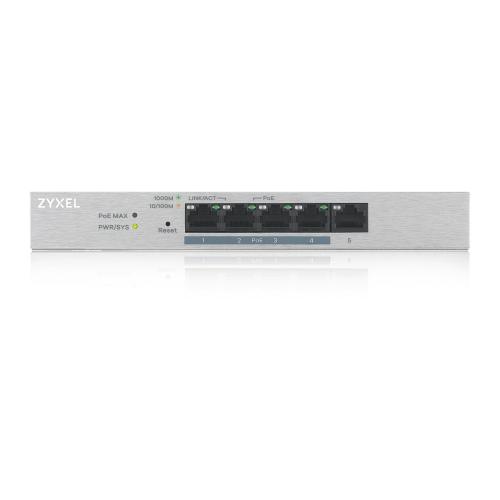

GS1200-5HPV2-EU0101F5-port Desktop Gigabit Web Smart switch: 5x Gigabit metal, 4x PoE (802.3at, 30W), PoE Power budget 60W, IPv6, 802.3az (Green), Easy set up wizard

OVERVIEW

Smart features

ZyXEL GS1200 series Web Manažérsky PoE Gigabit Switch umožňuje jednoduché riadenie pre správnu manažment. Unlike ďalšie rozšírené ale komplexné riadiace spínače, ZyXEL GS1200 série sú suitable pre most užívateľov a vykonávajú affordable riešenie s hlavnou povesťou vrátane PoE, VLAN, QoS, IGMP snooping v1/v2 a v3 kompatibility.

PoE support

ZyXEL GS1200-5HP a GS1200-8HP deliver PoE schopnosti IEEE 802.3at (30 watts/per port s celkovým Power power budget 60 watts) napájať energiu do PoE-káblovej siete prístrojov suchých a drôtov. Web GUI manažment je schopný monitorovať výkonný štatút každého portu a/alebo obnoviť sieťové zariadenia.

Easy Configuration

The ZyXEL GS1200 series nie je require any additional softvér. Je to viac visualized with easy, friendly a intuitive Web GUI, ktoré pomáhajú konfigurovať účty, aby sa dokončili v jednoduchých kliknutiach. It is much easier for small office users.

Energy Saving For IEEE 802.3az

The ZyXEL GS1200 series built-in IEEE 802.3az Energy Efficient Ethernet (EEE) funkcia automatickej detekcie sieťových trafík a adjusts power consumptions dynamically to redukcia power consumption počas nízkej link utilization periods.

TECHNICAL SPECS

Model GS1200-5HP *5-port GbE Web Managed PoE Switch

Chipset

Main chip *GS1200-5HP : Broadcom BCM53125

CPU *IC Plus IP210W

Port Density

Total port count *GS1200-5HP : 5

1000BASE-T *GS1200-5HP : 1

1000BASE-T PoE *4

Performance

Switching capacity *GS1200-5HP : 10 Gbps

Packet buffer *GS1200-5HP : 128 KB

MAC address *4K

Jumbo frame *9 KB

LED

Power *Yes

Per port *Yes

PoE power status *Yes (Max)

Power

Input voltage *55 V/1.3 A

Power supply *External

Maximum power consumption (watt) *72

PoE power budget (watt) *60

Physical Specifications

Dimensions (WxDxH) (mm) *GS1200-5HP : 193 x 84 x 26

Weight (kg) *GS1200-5HP : 0.4

Environmental Specifications

Operating temperature *0°C až 40°C

Operating humidity *10% až 90% (non-condensing)

Storage temperature *-40°C až 70°C

Storage temperature *10% až 90% (non-condensing)

Štandard Compliance

IEEE 802.3u 100BASE-TX Ethernet *Yes

IEEE 802.3ab 1000BASE-T Ethernet *Yes

IEEE 802.3az EEE support *Yes

IEEE 802.3x flow control *Yes

IEEE 802.3z 1000BASE-X *Yes

IEEE 802.1p CoS *Yes

IEEE 802.3af PoE *Yes

IEEE 802.3at PoE Plus *Yes (30W per port)

Auto MDI/MDI-X *Yes

IEEE802.1Q VLAN tagging *Yes

Features

Web-based management *Yes

System password *Yes

Port-based VLAN *Yes

VLAN (# Supported) *GS1200-5HP : 5

Port-based QoS *Yes

802.1p CoS *Yes

Broadcast storm control *Yes

Loop detection *GS1200-5HP : -

Weighted Round Robin (WRR) priority QoS *Yes

IGMP snooping v1/v2/and v3 compatible *Yes

Supported multicast groups *20

Firmware update *Yes

Certification

EMC *CE, FCC, C-Tick, Class A : Yes

Safety *LVD EN60950-1 : Yes *RoHS compliant : Yes
