Technické špecifikácie pre MBD-C9X299-RPGF-O


General Information

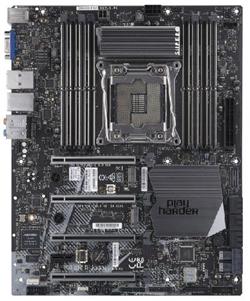

Manufacturer Part Number MBD-C9X299-RPGF-O
Brand Name Supermicro
Product Type Desktop Motherboard
Processor & Chipset
Chipset Manufacturer Intel
Total Processor Supported 1
Procesor Socket Socket R4 LGA-2066
Procesor Supported Core X-Series
Memory
Number of Memory Slots 8
Memory Form Factor UDIMM
DIMM

Maximum Memory 128 GB
Memory Speed Supported 1.87 GHz
2.67 GHz
2.40 GHz
2.13 GHz
1.60 GHz

Memory Technology DDR4 SDRAM
Intel Optane Memory Ready Yes
I/O Controller
Controller Type Serial ATA/600
RAID Supported Yes
RAID Levels 10
5
1
0

Video
Onboard Video On-board Video Chipset
Graphics Controller Manufacturer ASPEED
Graphics Controller Model AST2500
Network & Communication
Gigabit Ethernet Yes
I/O Expansions
Number of Total Expansion Slots 5
Total Number of PCI Express Slots 5
Číslo PCI Express x1 Slots 1
Číslo PCI Express x16 Slots 4
Interfaces/Ports
Total Number of USB Ports 6
Number of USB 3.0 Ports 2
Number of USB 3.1 Ports 4
VGA Yes
Onboard Interfaces
Number of SATA Interfaces 6
Number of M.2 Interfaces 2
Total Number of Onboard USB Ports 6
Number of Onboard USB 3.0 Ports 2
Physical Characteristics
Form Factor ATX
Width 12"
Depth 9.6"
Miscellaneous
Environmentally Friendly Yes
Environmental Certification RoHS
WEEE
